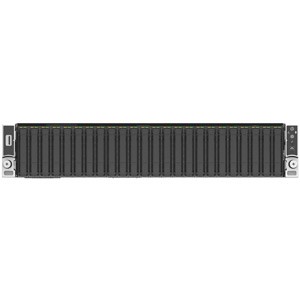

SKU: 850-28056C
  • 2x LGA3647 Xeon Scalable family
  • Max 7.5TB DR4 2933/2666/2400 ECC Reg (24 DIMMs)
  • 24x 2.5" SATA bays - Hot Swap - RAID 0, 1, 10
  • Intel X557-AT2 Dual port RJ45 10GbE
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Server Case Form Factor
  • 2U
  • 16.93" x 27.95" x 3.44"
Processor
  • 1st and 2nd Gen Intel Xeon processor Scalable family with maximum TDP of 205W.
  • Socket P
  • Dual (Not Included)
Chipset
Intel C624 Chipset
Type of Memory Supported
  • DDR4 2933/2666/2400 MHz ECC RDIMM, LRDIMM
  • Intel Optane DC Persistent Memory
Maximum Memory Supported
7.5TB
Number of Memory Slots
24
Slots
  • Riser Slot 1: 3 x PCIe 3.0 x8
  • Riser Slot 2: 3 x PCIe 3.0 x8
Rear I/O Ports
  • 3 x USB 3.0 ports
  • 1 x RJ45 Serial A port
  • 1 x VGA
  • 2 x RJ45 10GbE LAN ports
  • 1 x Dedicated Management Port
Video
Integrated 2D video controller
LAN
  • Intel X557-AT2 Dual port RJ45 10GbE ports
  • Dedicated Management port
SATA / SAS
    12 x SATA:
    • 2 x SATA 6Gb/s
    • 2 x M.2 - SATA / PCIe
    • 2 x 4-port mini-SAS (SFF-8643)
USB Port (s)
3 x USB 3.0 ports on Back Panel I/O
Optical Drive(s)
Not Included
Ext. Drive Bays
24 x 2.5"
Power
1300W
Motherboard Manufacturer
Intel S2600WFTR
Manageability
IPMI 2.0 compliant

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373

Package Contents

  • 1 Intel Server Board S2600WFTR (10GbE LAN)
  • 2 PCIe Riser card brackets Includes
    • 2 3-slot PCIe riser card A2UL8RISER2

  • 3 Hot-swap drive bays with drive carriers and drive blanks Includes
    • 3 SAS/NVMe Combo backplane F2U8X25S3PHS
    • 24 2.5” hot swap drive tool less carriers FXX25HSCAR3

  • 1 Storage Rack Handle Assembly A2UHANDLKIT
  • 1 250mm Backplane I2C cable
  • 2 75mm Backplane to Backplane I2C Jumper cable
  • 2 730mm Mini SAS HD VT-VT cable AXXCBL730HDHD
  • 4 875mm Mini SAS HD VT-VT cable AXXCBL875HDHD
  • 1 400/525/675mm Backplane power cable
  • 1 Standard 2U Air duct
  • 6 Hot swap system fans FR2UFAN60HSW
  • 16 DIMM slot blanks
  • 1 1300W AC Power Supply Module
  • 2 CPU heat sinks FXXCA78X108HS
  • 2 CPU heat sink “NO CPU” label inserts
  • 2 Standard CPU Carrier
  • 1 Power supply bay blank insert
  • 2 AC Power Cord retention strap assembly
  • 1 3x RMFBU Mounting Bracket
  • 1 250mm Fixed Mount SSD Power Cable

Compatible Accessories

Memory

Kingston 16GB DDR4-2666 ECC Reg CL19 SRx4 288-pin RDIMM
  • PC4-21300
  • Single-rank x4
Manufacturer: Kingston
Mfg P/N: KSM26RS4/16HDI
Availability: Usually ships with 1-2 business days
