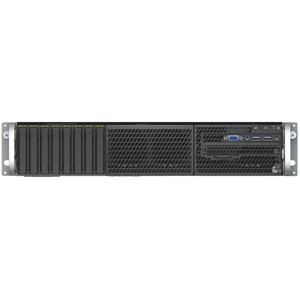

SKU: 850-28051C
  • 2x LGA3647 Xeon Scalable family
  • Max 7.5TB DR4 2933/2666/2400 ECC Reg (24 DIMMs)
  • 8x 2.5" SATA bays - Hot Swap - RAID 0, 1, 10
  • Intel X557-AT2 Dual port RJ45 10GbE
Our Price: $2,479.50
List Price: $2,999.00 You save: $519.50
Availability: Usually ships within 1-2 business days
Quantity:


Specifications

Server Case Form Factor
  • 2U
  • 16.93" x 27.95" x 3.44"
Processor
  • 1st and 2nd Gen Intel Xeon processor Scalable family with maximum TDP of 205W.
  • Socket P
  • Dual (Not Included)
Chipset
Intel C624 Chipset
Type of Memory Supported
  • DDR4 2933/2666/2400 MHz ECC RDIMM, LRDIMM
  • Intel Optane DC Persistent Memory
Maximum Memory Supported
7.5TB
Number of Memory Slots
24
Slots
  • Riser Slot 1: 3 x PCIe 3.0 x8
  • Riser Slot 2: 3 x PCIe 3.0 x8
  • Riser Slot 3: 1 x PCIe 3.0 x8 + 1 x PCIe 2.0 x8 (electrical x4)
Front I/O Ports
  • 2 x USB 3.0 ports
  • 1 x VGA
Rear I/O Ports
  • 3 x USB 3.0 ports
  • 1 x RJ45 Serial A port
  • 1 x VGA
  • 2 x RJ45 10GbE LAN ports
  • 1 x Dedicated Management Port
Video
Integrated 2D video controller
LAN
  • Intel X557-AT2 Dual port RJ45 10GbE ports
  • Dedicated Management port
SATA / SAS
    12 x SATA:
    • 2 x SATA 6Gb/s
    • 2 x M.2 - SATA / PCIe
    • 2 x 4-port mini-SAS (SFF-8643)
USB Port (s)
  • 3 x USB 3.0 ports on Back Panel I/O
  • 2 x USB 3.0 ports on Front Panel I/O
Optical Drive(s)
Not Included
Ext. Drive Bays
8 x 2.5"
Power
1300W
Motherboard Manufacturer
Intel S2600WFTR
Manageability
IPMI 2.0 compliant

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373

Package Contents

  • 1 Intel Server Board S2600WFTR (Dual 10GbE LAN)
  • 2 PCIe Riser card brackets includes
  • 2 3-slot PCIe riser cards 2UL8RISER2
  • 1 2-slot low profile PCIe riser card A2UX8X4RISER
  • 8 2.5” Hot-swap drive bays with drive carriers and drive blanks Includes
    • 1 SAS/NVMe Combo backplane F2U8X25S3PHS
    • 8 2.5” hot swap drive tool less carriers FXX25HSCAR3

  • 1 Standard control panel assembly FXXFPANEL2
  • 1 Front I/O Panel assembly (1 x VGA and 2 x USB)
  • 1 250mm Backplane I2C Cable
  • 2 730mm Mini SAS HD Cable AXXCBL730HDHD
  • 1 400/525/675mm Backplane power cable
  • 1 Standard 2U Air duct
  • 6 Hot swap system fans FR2UFAN60HSW
  • 8 DIMM slot blanks
  • 1 1300W AC Power Supply Module
  • 1 Power supply bay blank insert
  • 2 AC Power Cord retention strap assembly
  • 2 CPU heat sinks FXXCA78X108HS
  • 2 CPU heat sink “NO CPU” label insert
  • 2 Standard CPU Carrier
  • 2 Chassis handle (1 set) installed A2UHANDLKIT3
  • 1 3x RMFBU Mounting Bracket
  • 1 250mm Fixed Mount SSD Power Cable

Compatible Accessories

CPU

Intel Xeon Bronze 3106 8-Core 1.7GHz w/11MB LGA3647 CPU (BOX)
  • 8x Cores / 8x Threads
  • Supported Memory: DDR4-2133 ECC
Manufacturer: Intel
Mfg P/N: BX806733106
Availability: Usually ships with 1-2 business days
$368.95Add
Intel Xeon Gold 6240Y 18-Core 2.6GHz w/25MB LGA3647 CPU (Tray)
  • 18x Cores / 36x Threads / Turbo Boost: 3.9 GHz
  • Supported Memory: DDR4-2933 ECC
Manufacturer: Intel
Mfg P/N: CD8069504200501
Availability: Temporarily out of stock
$2,906.95
Intel Xeon Platinum 8260Y 24-Core 2.4GHz w/36MB LGA3647 CPU (Tray)
  • 24x Cores / 48x Threads / Turbo Boost: 3.9 GHz
  • Supported Memory: DDR4-2933 ECC
Manufacturer: Intel
Mfg P/N: CD8069504200902
Availability: Temporarily out of stock
$5,672.50
Intel Xeon Silver 4110 8-Core 2.1GHz w/11MB LGA3647 CPU (BOX)
  • 8x Cores / 16x Threads / Turbo Boost: 3.0 GHz
  • Supported Memory: DDR4-2400 ECC
Manufacturer: Intel
Mfg P/N: BX806734110
Availability: Usually ships with 1-2 business days
$551.95Add
Intel Xeon Silver 4214Y 12-Core 2.2GHz w/17MB LGA3647 CPU (Tray)
  • 12x Cores / 24x Threads / Turbo Boost: 3.2 GHz
  • Supported Memory: DDR4-2400 ECC
Manufacturer: Intel
Mfg P/N: CD8069504294401
Availability: Temporarily out of stock
$823.75

Memory

Kingston 16GB DDR4-2666 ECC Reg CL19 DRx8 288-pin RDIMM
  • PC4-21300
  • Dual-rank x8
  • Hynix
Manufacturer: Kingston
Mfg P/N: KSM26RD8/16HAI
Availability: Usually ships with 1-2 business days
$93.95Add
Kingston 16GB DDR4-2666 ECC Reg CL19 SRx4 288-pin RDIMM
  • PC4-21300
  • Single-rank x4
Manufacturer: Kingston
Mfg P/N: KSM26RS4/16MEI
Availability: Usually ships with 1-2 business days
$93.95Add
Kingston 8GB DDR4-2666 ECC Reg CL19 SRx8 288-pin RDIMM
  • PC4-21300
  • Single-rank x8
  • HYNIX (A-DIE)
Manufacturer: Kingston
Mfg P/N: KSM26RS8/8HAI
Availability: Usually ships same day
$52.50Add

Controllers

Intel AXXP3RTX16040 4-Port PCIe Gen3 x16 Retimer AIC
Manufacturer: Intel
Mfg P/N: AXXP3RTX16040
Availability: Lead time: 2 weeks
$163.95Add

Networking Card

Intel I350-T4 v2 Gigabit Quad Port PCIe x4 Server Adapter (Retail)
Manufacturer: Intel
Mfg P/N: I350T4V2
Availability: Usually ships with 1-2 business days
$339.50Add
Intel X550-T2 2-port 10Gb Ethernet Converged PCIe 3.0 x4 Network Adapter (bulk)
  • Low Power, 10 Gigabit Ethernet (10GbE)
  • 10GBase-T: 55m on CAT6, 100m on CAT6A
  • Backward Compatible with Existing 1000BASE-T Networks
Manufacturer: Intel
Mfg P/N: X550T2BLK
Availability: Usually ships same day
$333.25Add

Case Accessories

Intel A2U8X25S3PHS 2U Hot-swap 8x2.5inch SAS/NVMe Combo Drive Bay Kit
Manufacturer: Intel
Mfg P/N: A2U8X25S3PHS
Availability: Usually ships with 1-2 business days
$305.75Add

Power Supplies

Intel AXX1300TCRPS 1300W AC CRPS 80+ Titanium efficiency power supply
Manufacturer: Intel
Mfg P/N: AXX1300TCRPS
Availability: Usually ships with 1-2 business days
$334.95Add

Cables

Intel A2U8PSWCXCXK1 OCuLink SFF-8611 2.38ft Cable Kit
Manufacturer: Intel
Mfg P/N: A2U8PSWCXCXK1
Availability: Usually ships with 1-2 business days
$189.75Add
Intel A2U8PSWCXCXK2 OCuLink SFF-8611 2.87ft Cable Kit
Manufacturer: Intel
Mfg P/N: A2U8PSWCXCXK2
Availability: Temporarily out of stock
$181.95
Intel AXXCBL470CVCR OCuLink Cable Kit
Manufacturer: Intel
Mfg P/N: AXXCBL470CVCR
Availability: Lead time: 2 weeks
$37.50Add
Intel AXXCBL530CVCR OCuLink Cable Kit
Manufacturer: Intel
Mfg P/N: AXXCBL530CVCR
Availability: Lead time: 2 weeks
$34.95Add
Intel AXXCBL700CVCR OCuLink Cable Kit
Manufacturer: Intel
Mfg P/N: AXXCBL700CVCR
Availability: Usually ships with 1-2 business days
$36.95Add
Intel AXXCBL700HDCV 2x SFF-8643 U.2 to 2x SFF-8611 OCuLink 2.3ft Cable Kit - 2pk
  • two cables per kit
  • 2x SFF-8643 U.2 connector
  • 2x SFF-8611 connectors
Manufacturer: Intel
Mfg P/N: AXXCBL700HDCV
Availability: Usually ships with 1-2 business days
$87.95Add
Intel AXXCBL800CVCR OCuLink Cable Kit
Manufacturer: Intel
Mfg P/N: AXXCBL800CVCR
Availability: Lead time: 2 weeks
$37.50Add
