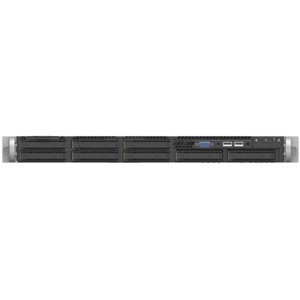

SKU: 850-28063A
  • 2x LGA3647 Xeon Scalable family
  • Max 7.5TB DR4 2933/2666/2400 ECC Reg (24 DIMMs)
  • 8x 2.5" bays - Hot Swap - RAID 0, 1, 10
  • Intel X557-AT2 Dual port RJ45 10GbE
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Server Case Form Factor
  • 1U
  • 16.93" x 27.95" x 1.72"
Processor
  • 1st and 2nd Gen Intel Xeon processor Scalable family with maximum TDP of 205W.
  • Socket P
  • Dual (Not Included)
Chipset
Intel C624 Chipset
Type of Memory Supported
  • DDR4 2933/2666/2400 MHz ECC RDIMM, LRDIMM
  • Intel Optane DC Persistent Memory
Maximum Memory Supported
7.5TB
Number of Memory Slots
24
Slots
2 x PCIe x16 via Riser card F1UL16RISER3
Front I/O Ports
  • 2 x USB 3.0 ports
  • 1 x VGA
Rear I/O Ports
  • 3 x USB 3.0 ports
  • 1 x RJ45 Serial A port
  • 1 x VGA
  • 2 x RJ45 10GbE LAN ports
  • 1 x Dedicated Management Port
Video
Integrated 2D video controller
LAN
  • Intel X557-AT2 Dual port RJ45 10GbE ports
  • Dedicated Management port
SATA / SAS
    12 x SATA:
    • 2 x SATA 6Gb/s
    • 2 x M.2 - SATA / PCIe
    • 2 x 4-port mini-SAS (SFF-8643)
USB Port (s)
  • 3 x USB 3.0 ports on Back Panel I/O
  • 2 x USB 3.0 ports on Front Panel I/O
Optical Drive(s)
Not Included
Ext. Drive Bays
8 x 2.5"
Power
1300W
Motherboard Manufacturer
Intel S2600WFTR
Manageability
IPMI 2.0 compliant

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373

Package Contents

  • 1U chassis with Quick Reference Label
  • 1 x Intel Server Board S2600WFTR
  • 2 x Riser card assembly with 1 slot PCIe x16 riser card F1UL16RISER3
  • 8 x 2.5” hot-swap drive bays with drive carriers and drive blanks.
  • 1 x Preinstalled standard control panel assembly (board only FXXFPANEL2)
  • 1 x Preinstalled front I/O panel assembly (1x VGA and 2x USB)
  • 1 x 200mm backplane I2C cable H91170-xxx
  • 1 x 650mm mini SAS HD Cable AXXCBL650HDHRT
  • 1 x 850mm mini SAS HD cable AXXCBL850HDHRT
  • 1 x 400mm backplane power cable H82099-xxx
  • 1 x SATA optical drive power cable 300 mm H23901-001
  • 1 x SATA optical drive bay mounting kit H19168-xxx
  • 1 x Air duct H90054-xxx
  • 6 x Dual rotor system fans FR1UFAN10PW
  • 1 x 1300W power supply module AXX1300TCRPS
  • 2 x CPU heat sinks J39509-xxx
  • 2 x Standard CPU carriers H72851-xxx
  • 8 x DIMM slot blanks iPN G75158-xxx
  • 1 x Chassis Stiffener Bar J16623-xxx
  • 1 x Power supply bay blank insert
  • 2 x AC power cord retention strap assembly H23961-00x
