SKU: 540-19518B
Our Price: Login to see price
Availability: Usually ships same day


Specifications

Enclosure Type
External - 1U
Width
17 in
Depth
6.3 in
Height
1.7 in
Weight
5.5 lbs
Networking
Ports Qty
8
Connectivity Technology
Wired
Features
Firmware upgradable
KVM
Keyboard / Mouse Interface
PS/2, USB
KVM Local Users Qty
1 local user
Max Cascading Depth
2
Max Resolution
2048 x 1536
Expansion / Connectivity
Interfaces
8 x keyboard / video / mouse (KVM) - 15 pin SPHD female
Connections
1 x keyboard / video / mouse (KVM) - 18 pin SPHD male
1 x USB - 4 pin USB Type A
Miscellaneous
Cables Included
5 x keyboard / mouse / video cable - 6 ft
4 x keyboard / mouse / video cable - 10 ft
1 x keyboard / mouse / video / USB cable
1 x cascade cable
Rack Mounting Kit
Included
Compliant Standards
DDC-2B, RoHS
Power
Power Device
Power adapter - external
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
0 - 80%

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: IOGEAR
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact IOGEAR at 949-428-1111
  • Technical Support: IOGEAR 949-428-1111

Package Contents

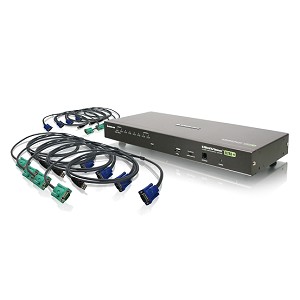

  • GCS1808KITU Combo KVM Switch
  • 4 x USB KVM Cables (6ft - G2L5202U)
  • 4 x USB KVM Cables (10ft - G2L5203U)
  • 1 x PS/2 KVM Cable (6ft - G2L5202P)
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Foot Pad Set (4 Pads)
  • 1 x Power Adapter
  • 1 x Standard Rack Mounting Kit
  • 1 x Installation Guide
  • 1 x Warranty Card
