Asus RS700-E10-RS12U-WOCPU005Z RS700-E10-RS12U 12x NVMe C621A XEON LGA4189 1U w/2x 1600W PSU

Asus RS700-E10-RS12U 12x NVMe C621A XEON LGA4189 1U w/2x 1600W PSU

Support: (812)282-2787

Asus RS700-E10-RS12U 12x NVMe C621A XEON LGA4189 1U w/2x 1600W PSU

SKU:	850-51030F

Support 2x LGA4189 3rd Gen Xeon Scalable family
Max 6TB DDR4 3200MHz ECC RDIMM (32 DIMMs)
12x 2.5" NVMe
Integrated IPMI with KVM and Dedicated LAN
Intel X710-AT2

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: Intel Xeon Silver 4310 12-Core 2.1GHz w/18MB LGA4189 CPU (Box)

: Intel Xeon Silver 4314 16-Core 2.4GHz w/24MB LGA4189 CPU (Box)

: Intel Xeon Silver 4316 20-Core 2.3GHz w/30MB LGA4189 CPU (Box)

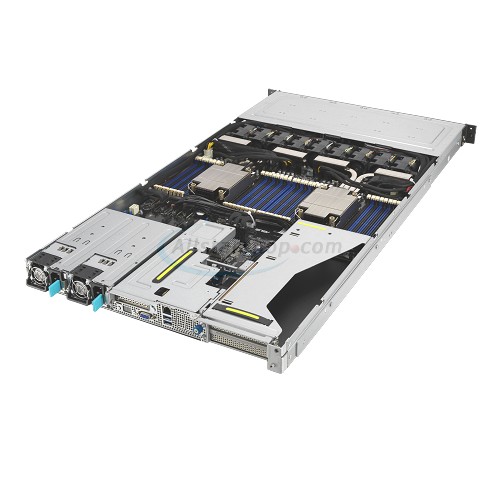

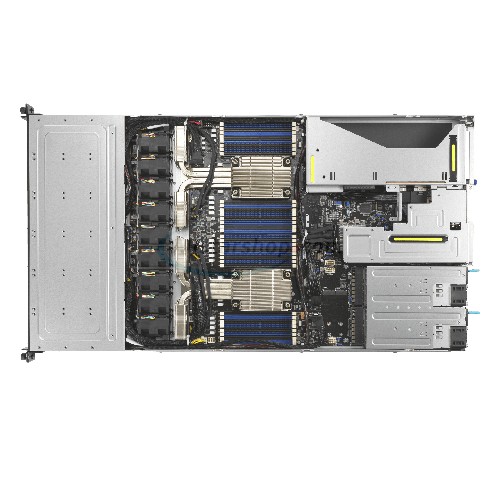

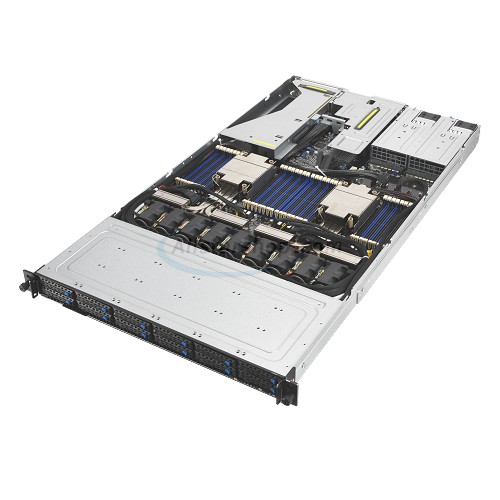

Asus RS700-E10-RS12U-WOCPU005Z 1U dual-socket server powered by 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, one dual-slot GPU, 12 NVMe, four PCIe slots, one OCP 3.0, dual M.2 and ASUS ASMB10-iKVM.

Description

Specifications

Server Case Form Factor

1U
17.3" 1.73" x 33.17"

Processor

3rd Gen Intel Xeon Scalable processors
Dual (Not Included)

Chipset

Intel C621A

Bios

UEFI BIOS

Type of Memory Supported

DDR4-3200 3DS-RDIMM/3DS-LRDIMM

Maximum Memory Supported

6TB

Number of Memory Slots

Slots

Slot1: 1 x PCIe x16 (Gen4 x16 link), FH, FL (CPU1)
Slot2: 1 x PCIe x16 (Gen4 x16 link), FH, FL (CPU2)
Slot3: 1 x PCIe x8 (Gen4 x8 link), LP (CPU1, Proprietary internal for PIKE)
Slot4: 1 x PCIe x16 or x8 (Gen4 x16 link), LP, HL (CPU2)

Front I/O Ports

N/A

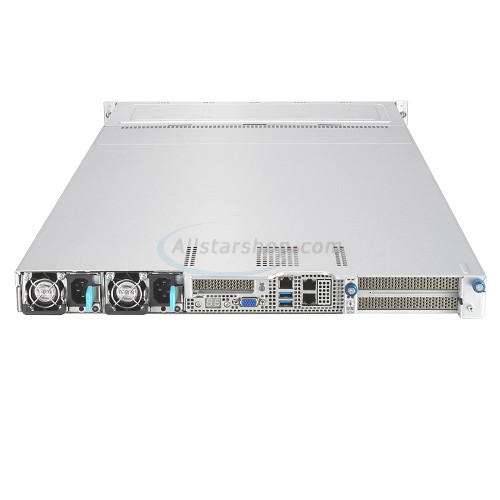

Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Mgmt LAN port
2 x NIC ports

Video

Aspeed AST2600 with 64MB VRAM

LAN

1 x X710-AT2 controller + 1 x Mgmt LAN

SATA / SAS

SATA Controller: Intel PCH C621A

Intel RSTe : Support software RAID 0/1/5/10
Intel VROC: Support RAID 0/1/5/10/50

Ext. Drive Bays

12 x 2.5" NVMe

SAS support only from SAS HBA/RAID card

Power

1600W 80 PLUS Platinum 1+1 Redundant Power Supply

Motherboard Manufacturer

ASUS

Manageability

Software: ASUS Control Center (Classic)

On-board ASMB10-iKVM for KVM-over-IP

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
