SKU: 800-51144
  • Max 16GB / 4 x Dimm DDR3 2200(OC)/1600/1333/1066
  • 7 x SATA, 1 x eSATA / RAID 0, 1, 10, 5 / 1 x IDE / 0 x FDD
  • Up to 14 x USB 2.0, 2 x IEEE 1394a
  • 1 x PCI-E 2.0 X16, 1 x PCI-E X16 (X4), 2 x PCI-E X1, 3 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1156 socket:
    • Intel Core i7
    • Intel Core i5
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel P55
System Bios
AMI BIOS
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 2200(OC)/1600/1333/1066 Memory
Maximum RAM
16GB

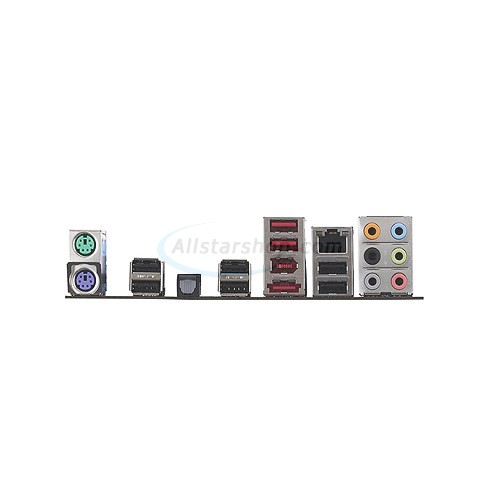

Back Panel I/O
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Optical S/PDIF Out
  • 1 x eSATA port
  • 8 x USB 2.0 ports
  • 1 x RJ45 LAN port
  • 1 x IEEE 1394 port
  • 1 x Audio I/O
    Number of PCI/PCI-Express Slots
    • 2 x PCI-Express 2.0 X16:
      • Blue: X16
      • Black: X4
    • 2 x PCI-Express X1
    • 3 x PCI
    On-Board EIDE/Floppy
    1 x UltraDMA 100/66/33 channel
    Integrated SATA/SAS
      Intel P55:
      • 6 x SATA II 3.0Gb/s
      JMicron JMB363:
      • 1 x SATA II 3.0Gb/s
      • 1 x eSATA 3.0Gb/s
    Integrated SATA/SAS RAID
      Intel :
      • Supports RAID 0, 1, 5 and 10
    Integrated Audio
    VIA VT1828S 8-Channel High Definition Audio CODEC
    Integrated Video
    No
    Integrated LAN
    Realtek 8112L Gigabit LAN controller
    USB
      Up to 14 x USB ports:
      • 8 x USB ports on Back Panel I/O
      • 6 x USB ports via headers
    IEEE 1394
      Up to 2 x IEEE 1394 ports:
      • 1 x IEEE 1394 port on Back Panel I/O
      • 1 x IEEE 1394 port via header
    Serial/Parallel Ports
    No
    PS/2 Ports
    • 1 x PS/2 Keyboard
    • 1 x PS/2 mouse
    Form Factor
    ATX
    Dimensions
    12" x 9.6"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

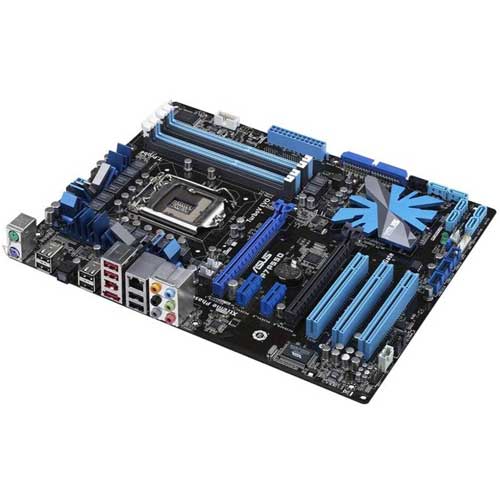

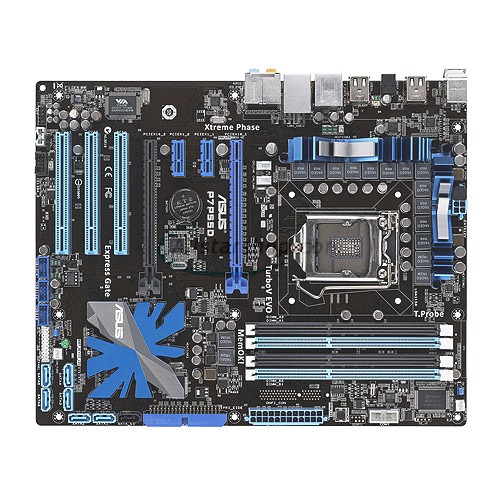

    • 1 x P7P55D motherboard
    • 1 x IDE cable
    • 4 x SATA cable
    • 2 in 1 Q-connector
    • ASUS Q-Shield
    • User's manual
