SKU: 800-51009C
  • Integrated Graphics - VGA
  • Max 64GB / 4x DDR4 ECC UDIMM
  • 8x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • 4x Gigabit LAN / 1x Management LAN
  • 1x PCIe X16, 2x PCIe X8, 1x PCI
Our Price: $303.25
List Price: $349.00 You save: $45.75
Availability: Temporarily out of stock
  Alert Me | Alternatives?

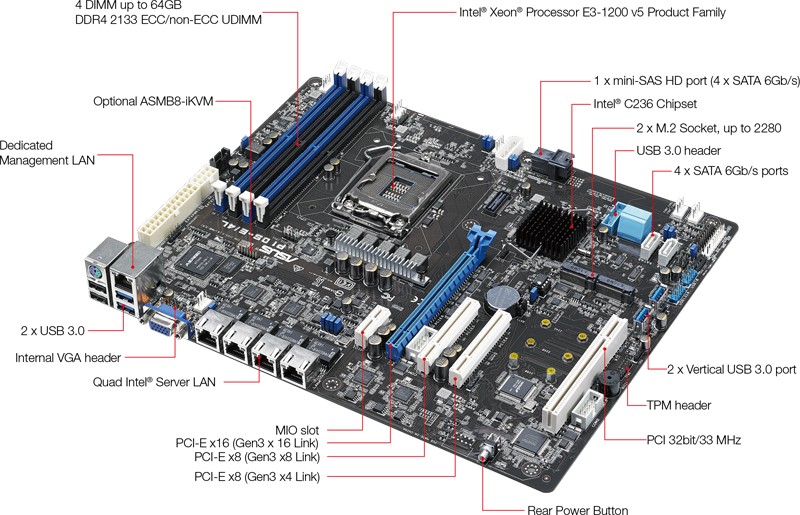

Specifications

CPU Support
    LGA1151 socket for:
    • Intel Xeon processor E3-1200 v5
    • 6th Generation Intel Core i3/Pentium/Celeron Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel C236 chipset
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4 2133 MHz ECC or non-ECC un-buffered memory
Maximum RAM
64GB

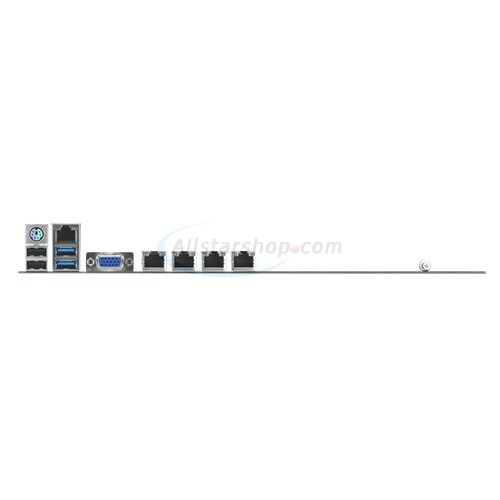

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse Combo
  • 2 x USB 3.0 (USB 3.1 Gen1)
  • 2 x USB 2.0
  • 1 x 15-pin VGA
  • 4 x RJ45 LAN ports
  • 1 x RJ45 Dedicated server management port
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16 (Auto switch to x8 link if x8 slot is occupied)
  • 2 x PCIe 3.0 x8
  • 1 x PCI
  • 1 x MIO for Audio card
Integrated SATA/SAS
8 x SATA 6Gb/s (4 by mini SAS HD)
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
# of M.2 Ports
2 x M.2 Socket 3 (for M Key, type 2242/2260/2280 storage devices)
# of SATA Express Ports
Not Available
Integrated Audio
Not Available
Integrated Video
Aspeed AST2400 32MB
Integrated LAN
  • 4 x Intel i210 Gigabit LAN
  • 1 x Mgmt LAN
USB
  • 2 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
  • 2 x USB 3.0 (USB 3.1 Gen1) Type A internal
  • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
  • 2 x USB 2.0 portss on Back Panel I/O
  • 4 x USB 2.0 ports via headers
IEEE 1394
Not Available
Serial/Parallel Ports
2 x Serial ports via haeders
PS/2 Ports
1 x PS/2 Keyboard/Mouse Combo
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

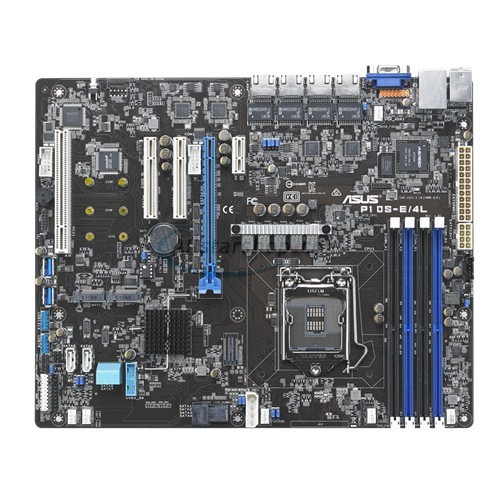

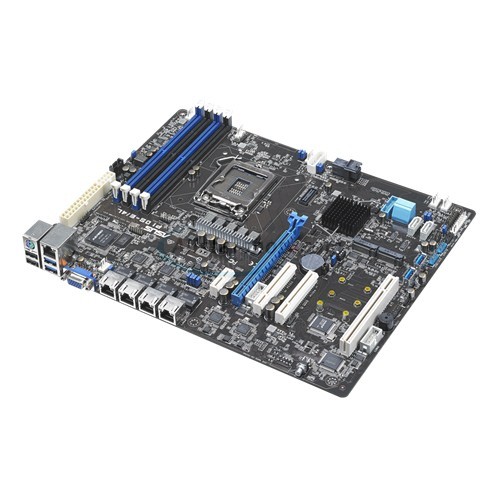

  • P10S-E/4L motherboard
  • User's manual
  • I/O Shield
  • Supporting DVD
  • 4 x SATA 6Gb/s cables
  • 1 x COM port cable
