SKU: 995-00215
  • 2200 VA / 1980 W
  • Full Load: 4 minutes / Half Load: 12 minutes
  • 8 x IEC 320 C13 / 2 x IEC Jumpers / 2 x IEC 320 C19
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Device Type
UPS - rack-mountable
Height (Rack Units)
2U
Depth
22.99 in
Height
3.35 in
Weight
55.12 lbs
Enclosure Color
Black
Power Device
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 275 V
Input Voltage Range (Adjustable)
AC 100 - 275 V
Frequency Required
50/60 Hz
Input Connector(s)
IEC-320 C20
Output Voltage
230 V ( 50 - 60 Hz )
Power Output Connectors Details
6 x power NEMA 5-15
Power Capacity
1980 Watt / 2200 VA
Output Waveform
Sine wave
Surge Suppression
Standard
Surge Energy Rating
340 Joules
Battery
Technology
Lead acid
Run Time (Up To)
4 min at full load
12 min at half load
Recharge Time
3 hour(s)
Expansion / Connectivity
Interfaces
1 x USB
1 x serial
Expansion Slot(s)
1 SmartSlot
Manufacturer Warranty
Service & Support
3 years warranty
Service & Support Details
Limited warranty - 3 years
Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature
32 ?F
Max Operating Temperature
104 ?F
Humidity Range Operating
0 - 95%
Sound Emission
55 dBA
Dimensions & Weight (Shipping)
Shipping Width
23.6 in
Shipping Depth
31.89 in
Shipping Height
9.69 in
Shipping Weight
75.00 lbs

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

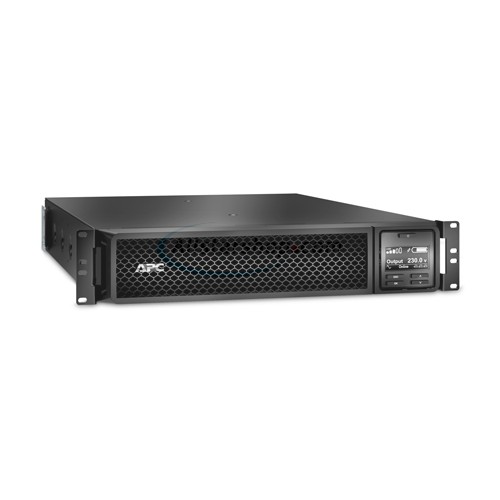

  • APC Smart UPS SRT2200RMXLI 2200VA/1980W
