SKU: 800-26570
  • Max 128GB / 4x DDR4 DIMM / Up to 4666+(O.C.)
  • 8x SATA 6GB/s, 3x M.2 / RAID 0, 1, 10
  • Up to 3x USB 3.2 G2 (2x USB-C), 8x USB 3.2 G1, 4x USB 2.0
  • 3x PCIe x16, 2x PCIe x1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
AMD AM4 3rd and 2nd Gen Ryzen processor
Number of Processor (s)
Single (Not Included)
Chipset
AMD X570
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
  • 3rd Gen AMD Ryzen : DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  • 2nd Gen AMD Ryzen: DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  • 2nd Gen Ryzen with Radeon Vega Graphics: DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
64GB

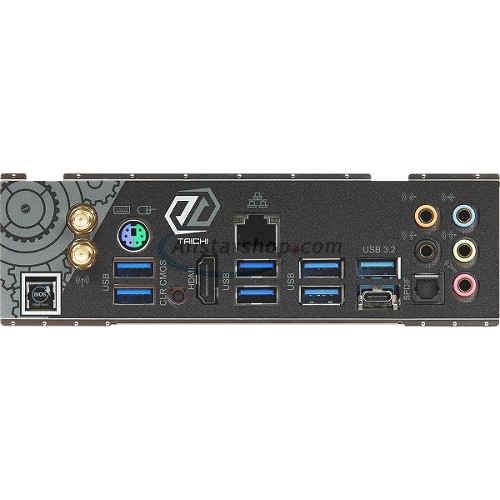

Back Panel I/O
  • 1 x PS/2 Mouse/Keyboard
  • 1 x USB 3.2 Gen 2 Type-A port
  • 1 x USB 3.2 Gen 2 Type-C port
  • 6 x USB 3.1 Gen 1 Type-A ports
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 2 x Antenna ports
Number of PCI/PCI-Express Slots
  • 3 x PCIe x16
    • 3rd Gen AMD Ryzen: single 4.0 x16 or dual 4.0 x8 or triple 4.0 x8, 4.0 x8 , 4.0 x4
    • 2nd Gen AMD Ryzen: single 3.0 x16 or dual 3.0 x8 or triple 3.0 x8 ,3.0 x8 , 4.0 x4
    • 2nd Gen Ryzen with Radeon Vega Graphics:
      • 1 x PCIe 3.0 x16 (max x8)
      • 1 x PCIe 4.0 x16 (max x4)
  • 2 x PCIe 4.0 x1
Integrated SATA/SAS
8 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280:
    • 3rd Gen AMD Ryzen: PCIE 4.0 x4 and SATA modes
    • 2nd Gen AMD Ryzen: PCIE 3.0 x4 and SATA modes
  • 1 x M.2_2 socket 3, with M Key, Type 2260/2280 PCIE 4.0 x4 modes storage devices support
  • 1 x M.2_3 socket 3, with M Key, Type 2230/2242/2260/2280/22110 PCIE 4.0 x4 and SATA modes storage devices support
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Intel I211AT Gigabit LAN
USB
  • 1 x USB 3.2 Gen 2 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen 2 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen 2 Type-C port via header
  • 6 x USB 3.2 Gen 1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen 1 Type-A ports via header
  • 4 x USB 2.0 ports via headers
PS/2 Ports
1 x PS/2 Mouse/Keyboard
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

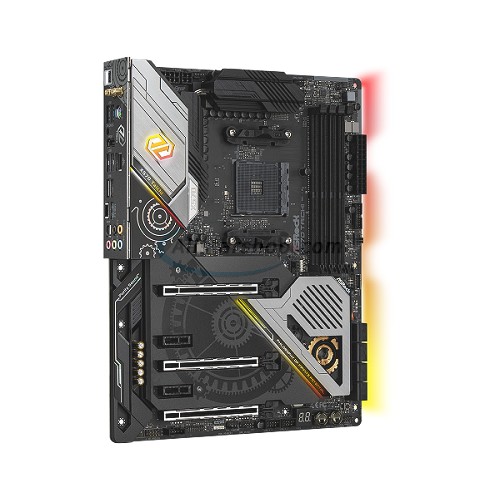

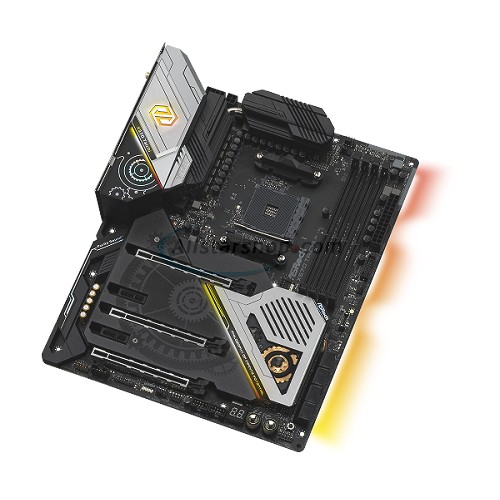

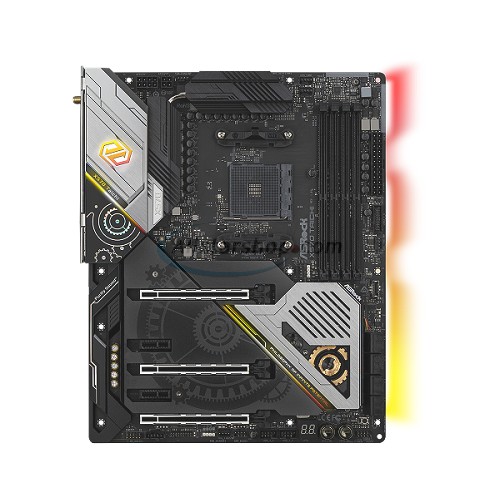

  • ASRock X570 Taichi motherboard
  • User's manual
  • Supporting CD
  • 4 x SATA cables
  • 3 x Screws for M.2 Sockets
  • 3 x Standoffs for M.2 Sockets
  • 1 x ASRock SLI_HB_Bridge_2S Card
  • 1 x ASRock WiFi 2.4/5 GHz Antenna
  • 1 x ASRock Screwdriver
