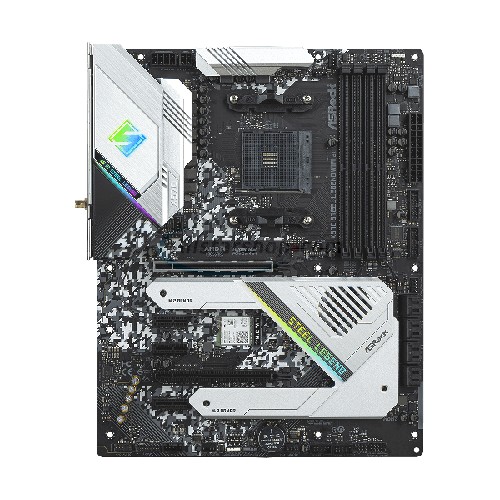

SKU: 800-26574A
  • Max 128GB / 4x DDR4 DIMM / Up to 4666+(O.C.)
  • 8x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 2x USB 3.2 G2 (1x USB-C), 10x USB 3.2 G1, 4x USB 2.0
  • 2x PCIe x16, 3x PCIe x1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
AMD AM4 3rd and 2nd Gen Ryzen processor
Number of Processor (s)
Single (Not Included)
Chipset
AMD X570
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
  • AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
  • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
  • AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*
Maximum RAM
128GB
Back Panel I/O
  • 1 x PS/2 Mouse/Keyboard
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB 3.2 Gen2 Type-C port
  • 6 x USB 3.2 Gen1 ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 2 x Antenna ports
Number of PCI/PCI-Express Slots
  • 2 x PCIe x16
    • 3rd Gen AMD Ryzen: single 4.0 x16 or dual 4.0 x16, x4
    • 2nd Gen AMD Ryzen: single 3.0 x16 or dual 3.0 x16, x4
    • 2nd Gen Ryzen with Radeon Vega Graphics: single 3.0 x8 or dual 3.0 x8, x4
  • 3 x PCIe 4.0 x1
Integrated SATA/SAS
8 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, with M key, type 2230/2242/2260/2280 storage devices support up to PCIe 4.0 x4 with 3rd Gen Ryzen or PCIe 3.0 x4 with 2nd Gen Ryzen
  • 1 x M.2 Socket 3, with M key, type 2230/2242/2260/2280/22110 storage devices support SATA and up to PCIe 4.0 x4
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Intel I211AT Gigabit LAN
Integrated Wifi
Intel 802.11ax WiFi Module
PS/2 Ports
1 x PS/2 Mouse/Keyboard
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

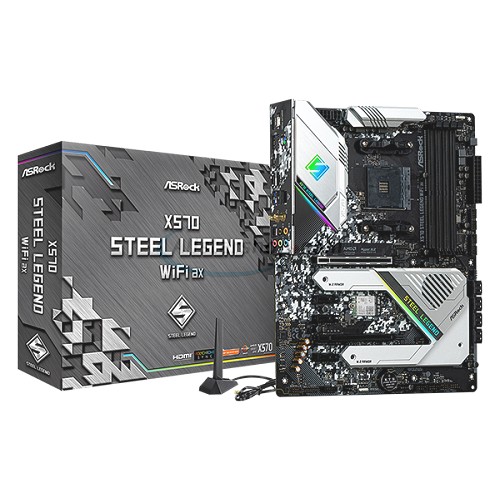

  • ASRock X570 Steel Legend WiFi ax motherboard
  • User's manual
  • Supporting CD
  • 4 x SATA cable
  • 3 x Screws for M.2 Sockets
  • 2 x Standoffs for M.2 Sockets
