SKU: 800-26537A
  • Integrated Intel Graphics - DVI / HDMI / VGA
  • Max 64GB / 4x DDR4 DIMM / Up to 2666
  • 6x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • Up to 7x USB 3.0 (1x USB-C), 6x USB 2.0
  • 2x PCIe X16, 1x PCIe X1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1151 socket for 9th and 8th Generation Intel Core i7/ i5/ i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B365 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory
Maximum RAM
64GB

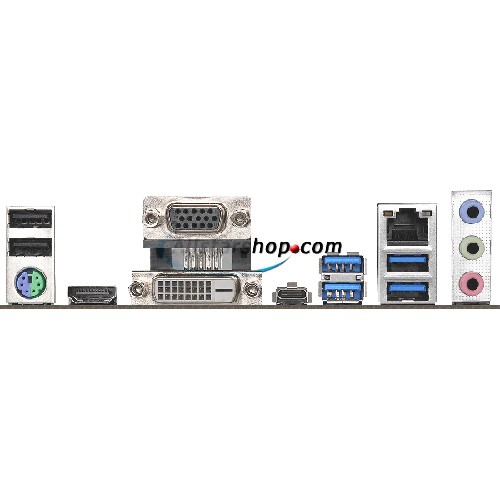

Back Panel I/O
  • 1 x PS/2 keyboard/mouse combo port
  • 4 x USB 3.0 (USB 3.1 Gen1) Type-A ports
  • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port
  • 2 x USB 2.0 ports
  • 1 x HDMI
  • 1 x DVI-D
  • 1 x VGA
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (max. x4)
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE 3.0 X4 mode
  • 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 X4 mode)
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC892 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel I219V Gigabit LAN
USB
    Up to 13 x USB ports:
    • 4 x USB 3.0 (USB 3.1 Gen1) Type-A ports on Back Panel I/O
    • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) via headers
    • 2 x USB 2.0 ports on Back Panel I/O
    • 4 x USB 2.0 Type-A ports via headers
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
1 x PS/2 keyboard/mouse combo port
Form Factor
microATX
Dimensions
9.6" x 9.0"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

  • B365M Pro4 motherboard
  • User's manual
  • Supporting DVD
  • I/O Shield
  • 2 x SATA 6Gb/s cables
  • 2 x M.2 Screws
