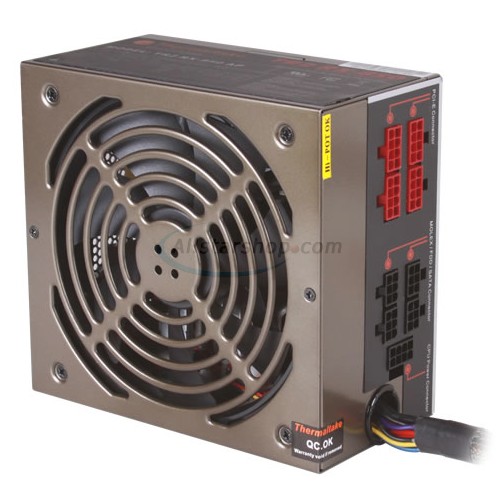

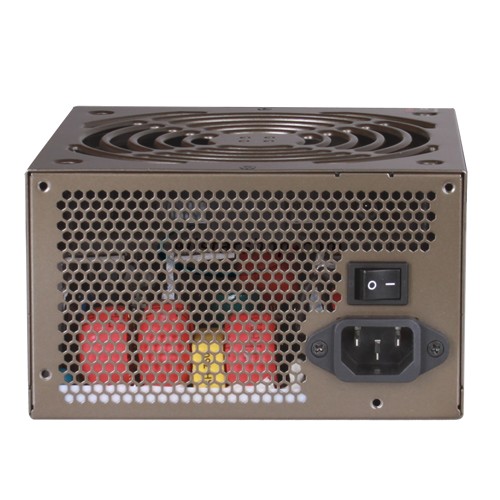

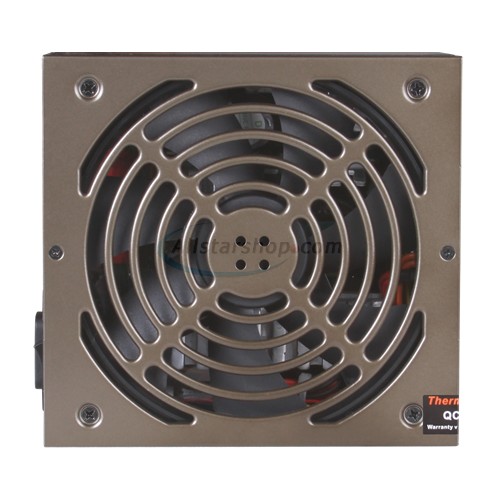

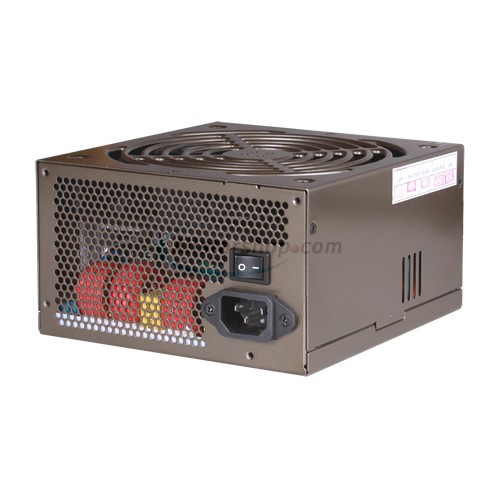

Thermaltake TR2 RX W0319 ATX12V 850W PSU (Modular) - (Discontinued)

Support: (800)988-1088

Thermaltake TR2 RX W0319 ATX12V 850W PSU (Modular) - (Discontinued)

SKU:

992-63098

85% + Efficiency
4 x +12 rail
2 x 8-pin PCI-E, 2 x 6-pin PCI-E, 2 x 8-pin to 6-pin PCI-E connectors
MTBF ~120,000 hours
Modular Cables

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Kingston 32GB DDR5-5600 CL46 1Rx8 288-pin DIMM

: Solidigm D7-PS1010 3.84TB PCIe 5.0 x4 U.2 NVMe SSD

: Solidigm D7-PS1010 7.68TB PCIe 5.0 x4 U.2 NVMe SSD

Toughpower series power supplies come with the latest 8-pin PCI-E connector required for next generation NVIDIA & ATI Graphic cards. The new defined 8-pin PCI-E connector is downward compatible with the existing 6-pin PCI-E connector. Thus, with the included 6pin/8-pin connectors, Toughpower are able to support for PCI-E 2.0 next generation graphic cards.

Features

ATX 12V V2.3 & EPS 12V 2.91 enables most reliable and robust power delivery.

Guarantee to deliver 850W of continuous power output at 40℃

Robust and dedicated single +12V output provides superior performance under all types of system loading.

80 PLUS® Bronze Certified: 85% or more efficiency at 20%, 50%, and 100% load.

Double forward ultra-efficient circuitry design for added power savings.

Ultra-quiet 140mm cooling fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature

Universal AC input 115V~240V automatically scans and detects the correct voltage for different countries.

99% Active Power Factor Correction provides clean and reliable power to your system

Cable Management improves internal airflow by reducing cable clutter within PC to promote accelerated heat removal

Intel® & AMD CPU compliant.

Nvidia® & ATI/AMD graphic card compatible.

High Reliability: MTBF > 100,000 hours

Built in industrial-grade protections: Over Current, Over Voltage, Over Power and Short-Circuit protections.

Safety / EMI : UL/ CUL, TUV, FCC, CE, GOST and BSMI certified.

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 8	4-pin Floppy x 2	SATA x 6	6-pin PCI-Express x 2	8-pin 12Vx
8-pin PCI-Express x 2	4pin+4 12V x 1	8-pin-to-6-pin PCI-Express x 2


Quad +12V Rails and EPS Structure	Silent 140mm Fan

Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%

Description

ATX 12V V2.3 & EPS 12V 2.91 enables most reliable and robust power delivery.

Guarantee to deliver 850W of continuous power output at 40℃

Robust and dedicated single +12V output provides superior performance under all types of system loading.

80 PLUS® Bronze Certified: 85% or more efficiency at 20%, 50%, and 100% load.

Double forward ultra-efficient circuitry design for added power savings.

Ultra-quiet 140mm cooling fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature

Universal AC input 115V~240V automatically scans and detects the correct voltage for different countries.

99% Active Power Factor Correction provides clean and reliable power to your system

Cable Management improves internal airflow by reducing cable clutter within PC to promote accelerated heat removal

Intel® & AMD CPU compliant.

Nvidia® & ATI/AMD graphic card compatible.

High Reliability: MTBF > 100,000 hours

Built in industrial-grade protections: Over Current, Over Voltage, Over Power and Short-Circuit protections.

Safety / EMI : UL/ CUL, TUV, FCC, CE, GOST and BSMI certified.

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 8	4-pin Floppy x 2	SATA x 6	6-pin PCI-Express x 2	8-pin 12Vx
8-pin PCI-Express x 2	4pin+4 12V x 1	8-pin-to-6-pin PCI-Express x 2


Quad +12V Rails and EPS Structure	Silent 140mm Fan

Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%

Specifications

Efficiency

85+ %

Fans

140mm

MTBF

~120,000 hours

Version Support

ATX 12V 2.2

Current

Input Current: 115 VAC / 10A max 230 VAC / 5A max

Frequency

47~ 63 Hz

Output Voltage

Output Voltage	Min. Load	Max. Load
+3.3V	0.5A	28A
+5V	0.5A	28A
+12V1	1A	18A
+12V2	1A	18A
+12V3	1A	18A
+12V4	1A	18A
-12V	0A	0.8A
+5Vsb	0A	3A

Dimensions

6.3 x 5.9 x 3.3 inch (L)x(W)x(H) 160 x 150 x 85 mm (L)x(W)x(H)

Certifications & Standards

ATI CrossFire X Certified 80 Plus Certified

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.

Package Contents

TR2 RX W0319RU 850W ATX12V PSU
Power Cord
