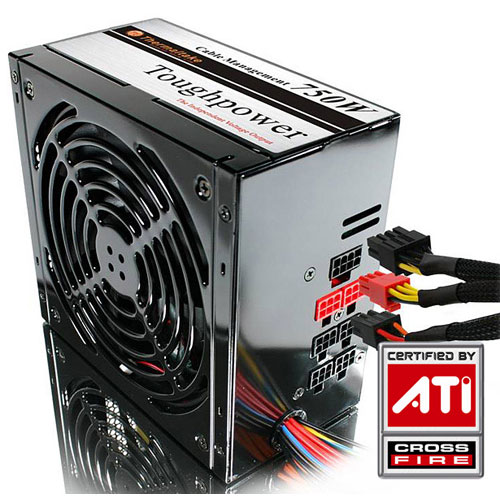

Thermaltake Toughpower Cable Management W0116RU 750W ATX12V PSU (ATI CrossFire Certified)

Welcome to Allstarshop

This website uses cookies to provide you a personalized web experience. Using this website you agree to our use of cookies. If you require more information, please visit our Privacy Policy. Agree

Thermaltake Toughpower Cable Management W0116RU 750W ATX12V PSU (ATI CrossFire Certified) - (Discontinued)

Support: (800)988-1088

Thermaltake Toughpower Cable Management W0116RU 750W ATX12V PSU (ATI CrossFire Certified) - (Discontinued)

SKU:

992-63037

85% + efficiency / 80 plus Certified / ATI CrossFire Certified
4 x +12V rails - Combined 60A
1 x 8-pin PCI-e and 2 x 6-pin PCI-e connectors
MTBF: 120,000 hours
ATX12V 2.2 / EPS12V 2.91
Free Ground Shipping

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Kingston 32GB DDR5-5600 CL46 1Rx8 288-pin DIMM

: Solidigm D7-PS1010 3.84TB PCIe 5.0 x4 U.2 NVMe SSD

: Solidigm D7-PS1010 7.68TB PCIe 5.0 x4 U.2 NVMe SSD

Proper airflow within computer system plays an extremely important role in making sure CPU, Graphic Card(s), Hard Drives and other critical components are getting adequate cooling. Thermaltake Cable Management Technology allows users to only use the cables needed from the power supply that reduces amount of cable clutter within the computer to improve cooling and reduce system noise.

Features

Complies with ATX 12V 2.2 & EPS 12V version

Modularized Cable Management to eliminate clutter and improve airflow inside the case

Supports Dual Core CPU, ATI CrossFire, and all Multi-Core GPU technologies.

Built in next generation 8-pin PCI-Express graphic card connector.

Four +12V rails(12V1,12V2,12V3,12V4) supports high-end graphic card and PC system (combined loading of 60A).

Independent Voltage Circuit: offers unflappable current delivery under heavy load and makes voltage output more stable

Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%)

Extremely good voltage regulation (±3%): provides steady voltage for system

Industrial grade components (capacitor, transformer, etc)

High reliability: MTBF>120,000 hours

Mirror effect housing and reliable 14cm ball-bearing fan

Protections: Over Current, Over Voltage, and Short-Circuit protection

Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified

	Quad +12V Rails and EPS Structure		Intelligent Cable Management
	Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%		Silent 140mm Fan

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 8	4-pin Floppy x 2	SATA x 6	4-pin 12V x 1	6-pin PCI-Express x 2
8-pin PCI-Express x 1	4pin+4 12V x 1	8-pin-to-6-pin PCI-Express x 1

Description

Complies with ATX 12V 2.2 & EPS 12V version

Modularized Cable Management to eliminate clutter and improve airflow inside the case

Supports Dual Core CPU, ATI CrossFire, and all Multi-Core GPU technologies.

Built in next generation 8-pin PCI-Express graphic card connector.

Four +12V rails(12V1,12V2,12V3,12V4) supports high-end graphic card and PC system (combined loading of 60A).

Independent Voltage Circuit: offers unflappable current delivery under heavy load and makes voltage output more stable

Active Power Factor Correction (PF>0.99) and high efficiency (up to 85%)

Extremely good voltage regulation (±3%): provides steady voltage for system

Industrial grade components (capacitor, transformer, etc)

High reliability: MTBF>120,000 hours

Mirror effect housing and reliable 14cm ball-bearing fan

Protections: Over Current, Over Voltage, and Short-Circuit protection

Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified

	Quad +12V Rails and EPS Structure		Intelligent Cable Management
	Noise Preventive Silicon Pad - Effectively reduces vibration noise by as much as 80%		Silent 140mm Fan

Output Connectors

20+4-pin Main Power x 1


4-pin Peripheral x 8	4-pin Floppy x 2	SATA x 6	4-pin 12V x 1	6-pin PCI-Express x 2
8-pin PCI-Express x 1	4pin+4 12V x 1	8-pin-to-6-pin PCI-Express x 1

Specifications

Efficiency

85%+

Fans

140mm @ 1900RPM

MTBF

120,000 hours

Protection

Over Voltage

Version Support

2.2

Frequency

47~63Hz

Output Power

750W

Output Voltage

Output Voltage	Min. Load	Max. Load	Regulation	Noise
+3.3V	0.5A	28A	+3,-3%	50mV
+5V	0.5A	28A	+3,-3%	50mV
+12V1	1A	18A	+3,-3%	120mV
+12V2	1A	18A	+3,-3%	120mV
+12V3	1A	18A	+3,-3%	120mV
+12V4	1A	18A	+3,-3%	120mV
-12V	0A	0.8A	+9,-5%	120mV
+5Vsb	0A	3A	+5,-3%	50mV
+12V Combined	60A

Input Voltage

100V AC to 240V AC

Interfaces/Ports

Logic On/Off Switch

Power Rocker Switch

Connectors

1 x 4-pin SP4 Floppy Drive

8 x 4-pin LP4 Peripheral Device

6 x 5-pin Serial ATA

2 x 6-pin PCI-E

1 x 8-pin EPS12V

1 x 24-pin ATX Motherboard

Dimensions

3.35" Height x 5.91" Width x 6.3" Depth

Certifications & Standards

CE, CB, TUV, FCC, UL, CUL, BSMI, nVIDIA SLi

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.
