SKU: 455-45058B

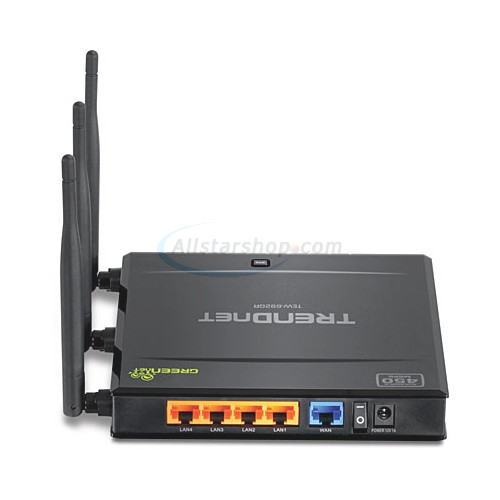

  • 4 x 10/100/1000 Mbps Auto-MDIX LAN ports
  • 1 x 10/100/1000 Mbps WAN port
  • High-speed data rates up to 450 Mbps using 2.4GHz and 5GHz bands
  • Complaign with IEEE 802.11n/g/b/a standards
  • One touch wireless connection to wireless clients using WPS button
Our Price: Login to see price
Discontinued - Not orderable


Specifications

General Information
Manufacturer
TRENDnet
Manufacturer Part Number
TEW-692GR
Manufacturer Website Address
Wireless Specifications
Wi-Fi Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz
ISM Maximum Frequency
2.47 GHz
UNII Minimum Frequency
5.15 GHz
UNII Maximum Frequency
5.83 GHz
Antenna Gain
3 dBi
Wireless Transmission Speed
56.25 MBps
Wireless Security
  • 64/128-bit WEP
  • WPA-PSK
  • WPA2-PSK
  • WPA-RADIUS
  • WPA2-RADIUS
  • WPS
  • Features
    Quality of Service (QoS)
    Interfaces/Ports
    Ethernet Port
    Yes
    Fast Ethernet Port
    Yes
    Gigabit Ethernet Port
    Yes
    Number of Network (RJ-45) Ports
    4
    Network (RJ-11)
    No
    Number of Broadband (RJ-45) Ports
    1
    Management & Protocols
    Management

    Web Based Management

    Security features
  • NAT
  • PPTP
  • L2TP
  • DMZ
  • Internet Access Control
  • MAC Filtering
  • URL Filtering
  • IP Range Filtering
  • Power Description
    Input Voltage
    12 V DC
    Power Source
    AC Adapter
    Physical Characteristics
    Height
    1.02"
    Depth
    6.42"
    Miscellaneous
    System Requirements

    Web Browsers:

  • Internet Explorer
  • FireFox
  • Safari
  • Chrome
  • Certifications & Standards
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3az
  • CE
  • FCC
  • Green Compliance
    Yes
    Green Compliance Certificate/Authority
    WEEE

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

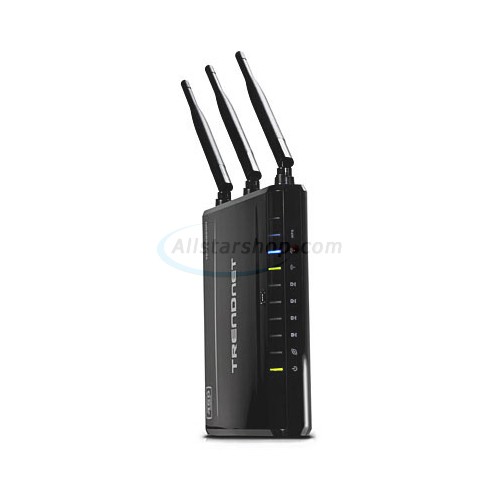

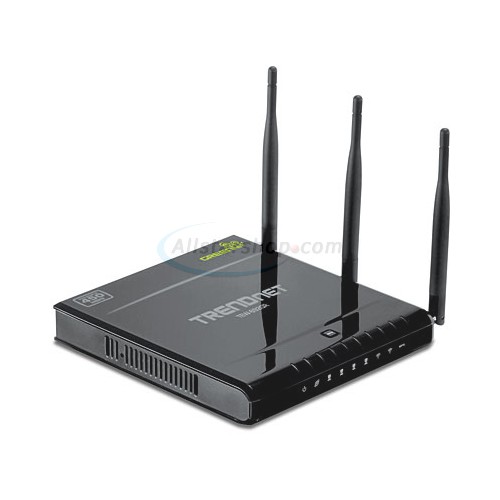

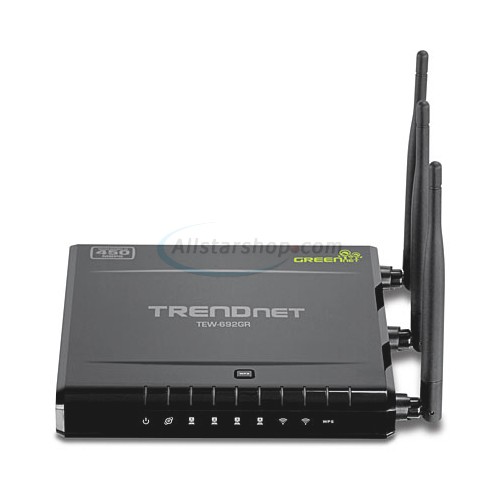

    • TEW-692GR Wireless Router
    • Multi-Language Quick Installation Guide
    • CD-ROM (User's Guide)
    • Network cable (1m / 3.2 ft.)
    • Power adapter (12V DC, 1A)
