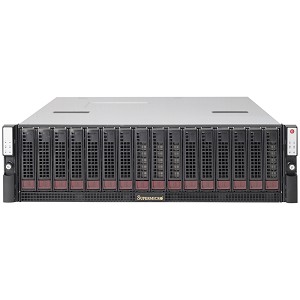

Supermicro 6036ST-6LR 2x LGA1366 XEON i5520 3U w/2x 1200W PSU - (Discontinued)

Support: (408) 503-8000

Supermicro 6036ST-6LR 2x LGA1366 XEON i5520 3U w/2x 1200W PSU - (Discontinued)

SKU:	850-11726H

2x LGA1366 Xeon 5600/5500 series
Max 48GB DDR3 1333/1066/800MHz ECC Reg (6 DIMMs)
16x 3.5" SAS bays - Hot Swap - RAID 0/1/10/1E - LSI 2008
Intel 82599EB 10 Gigabit Ethernet + 82576 Dual-Port Gigabit Ethernet
Integrated IPMI 2.0 with KVM

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Kingston 32GB DDR5-5600 CL46 1Rx8 288-pin DIMM

: Solidigm D7-PS1010 3.84TB PCIe 5.0 x4 U.2 NVMe SSD

: Solidigm D7-PS1010 7.68TB PCIe 5.0 x4 U.2 NVMe SSD

The 6036ST-6LR Super SBB was designed to function as a fully redundant, faulttolerant
"cluster-in-a-box" system. The standard support for 16 3.5" hot-swap HDDs (SAS1, SAS2 or Enterprise SATA) may be expanded to support an additional 16 HDDs with the optional SBB JBOD SYS-937R-E2JB configuration.

Two systems (nodes) in a 3U form factor. Each node supports the following:

Intel Xeon processor 5600/5500 series, with QPI up to 6.4 GT/s
Up to 96GB DDR3 1333/1066/800MHz ECC Registered DIMM / 12GB Unbuffered DIMM
Expansion Slots
- 1 x PCI-Express 2.0 X8 (w/ riser)
- 2 x PCI-Express 2.0 X4 (w/ riser)
Intel 82576 Dual-Port Gigabit Ethernet + Intel 82599 10-Gigabit Ethernet for interconnection
LSI 2008 6Gbps SAS Controller
16 x 3.5" Hot-swap Drives Trays
1200W Gold Level Power Supply
Integrated IPMI 2.0

Description

Two systems (nodes) in a 3U form factor. Each node supports the following:

Intel Xeon processor 5600/5500 series, with QPI up to 6.4 GT/s
Up to 96GB DDR3 1333/1066/800MHz ECC Registered DIMM / 12GB Unbuffered DIMM
Expansion Slots
- 1 x PCI-Express 2.0 X8 (w/ riser)
- 2 x PCI-Express 2.0 X4 (w/ riser)
Intel 82576 Dual-Port Gigabit Ethernet + Intel 82599 10-Gigabit Ethernet for interconnection
LSI 2008 6Gbps SAS Controller
16 x 3.5" Hot-swap Drives Trays
1200W Gold Level Power Supply
Integrated IPMI 2.0

Specifications

Server Case Form Factor

3U Rackmount Width: 17.2" x Height: 5.2" x Depth: 25.5"

Processor

Intel XeonProcessor 5600 Series (Westmere)
Intel Xeon Processor 5500 Series (Nehalem-EP)

Chipset

Intel 5520 (Tylersburg) chipset
ICH10R + IOH-36D

Bios

32Mb SPI Flash EEPROM with AMI BIOS

Type of Memory Supported

240-pin DDR3 1333/1066/800 MHz ECC Registered memory

240-pin DDR3 1333/1066/800 MHz ECC / Non ECC Unbuffered memory

Maximum Memory Supported

96 GB ECC Registered memory

24 GB ECC / Non ECC Unbuffered memory

Number of Memory Slots

Slots

1 x PCI-Express 2.0 X8 (w/ riser)
2 x PCI-Express 2.0 X4 (w/ riser)

Rear I/O Ports

2 x USB 2.0 ports
1 x 15-pin VGA
2 x RJ45 LAN ports

Audio

Video

Matrox G200eW

LAN

Intel 82599EB 10 Gigabit Ethernet Controller for interconnection
Intel 82576 Dual-Port Gigabit Ethernet Controller

SATA / SAS

LSI 2008 6Gbps SAS Controller

SCSI

USB Port (s)

2 x USB ports on Back Panel I/O
1 x USB ports via headers

Floppy Disk Drive

Optical Drive(s)

Ext. Drive Bays

16 x 3.5" Hot-swap Drives Trays

Int. Drive Bays

Power

Redundant 1200W high-efficiency power supply with PMBus

Motherboard Manufacturer

X8DTS-F

Manageability

Integrated IPMI 2.0

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
