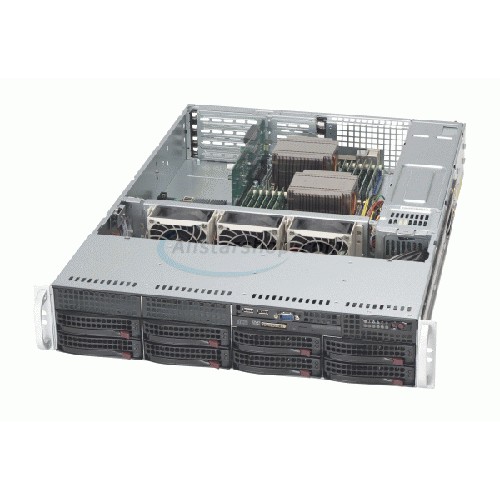

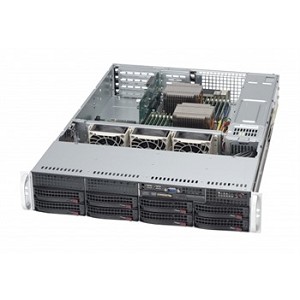

Supermicro SYS-6026T-URF 6026T-URF XEON i5520 2U w/2x 720W PSU (Black)

Supermicro 6026T-URF XEON i5520 2U w/2x 720W PSU (Black) - (Discontinued)

Support: (408) 503-8000

Supermicro 6026T-URF XEON i5520 2U w/2x 720W PSU (Black) - (Discontinued)

SKU:

850-11745

2x LGA1366 Xeon 5500/5600 series
Max 192GB DDR3 1333/1066/800MHz ECC Reg (12 DIMMs)
8x 3.5" SATA bays - Hot Swap - RAID 0/1/10/5 - ICH10R
Intel 82576 Dual-Port Gigabit Ethernet
3x PCe X8, 1x UIO Riser Card

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Kingston 32GB DDR5-5600 CL46 1Rx8 288-pin DIMM

: Solidigm D7-PS1010 3.84TB PCIe 5.0 x4 U.2 NVMe SSD

: Solidigm D7-PS1010 7.68TB PCIe 5.0 x4 U.2 NVMe SSD

Dual Intel 5500/5600 series Xeon Quad/Dual-Core, with QPI up to 6.4 GT/s
Up to 192GB DDR3 1333/ 1066/800MHz ECC Registered DIMM / 48GB Unbuffered DIMM
Expansion Slots:
- Left Slot (Full-height / Full-length): 3 (x8) PCI-E 2.0 + 1 UIO
Intel 82576 Dual-port Gigabit Ethernet Controller

8 x 3.5" Hot-swap Drives Trays

720W High-efficiency Gold Level Redundant Power Supply
Integrated IPMI 2.0 with Dedicated LAN

Description

Dual Intel 5500/5600 series Xeon Quad/Dual-Core, with QPI up to 6.4 GT/s
Up to 192GB DDR3 1333/ 1066/800MHz ECC Registered DIMM / 48GB Unbuffered DIMM
Expansion Slots:
- Left Slot (Full-height / Full-length): 3 (x8) PCI-E 2.0 + 1 UIO
Intel 82576 Dual-port Gigabit Ethernet Controller

8 x 3.5" Hot-swap Drives Trays

720W High-efficiency Gold Level Redundant Power Supply
Integrated IPMI 2.0 with Dedicated LAN

Specifications

Server Case Form Factor

2U
Width: 17.2" x Height: 3.5" x Depth: 25.5"

Processor

Supports Dual 1366-pin LGA Sockets
Quad-Core Intel Xeon Processor 5500 sequence (Nehalem-EP processor)

Chipset

Intel 5520 (Tylersburg) chipset
ICH10R + IOH-36D

Bios

32Mb SPI Flash EEPROM with AMI BIOS

Type of Memory Supported

240-pin DDR3 1333/1066/800MHz ECC Register DIMM

240-pin DDR3 1333/1066/800MHz ECC Unbuffered DIMM

Maximum Memory Supported

192GB ECC Registered memory

48GB ECC Unbuffered memory

Number of Memory Slots

Slots

3 x PCI-Express 2.0 X8
1 x Unversal I/O (UIO) Slot

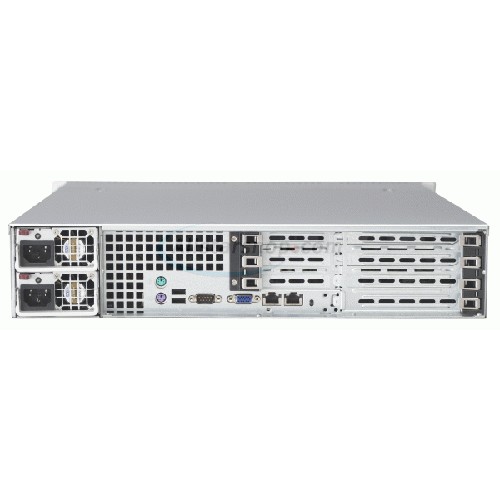

Rear I/O Ports

1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Serial port
1 x VGA port
4 x USB ports
2 x RJ45 LAN ports
1 x RJ45 Dedicated IPMI LAN port

Audio

Video

Matrox G200eW

LAN

Intel 82576 Dual-Port Gigabit Ethernet Controller
Realtek RTL8201N PHY (dedicated IPMI)

SATA / SAS

6 x SATA 3Gb/s
RAID 0, 1, 5, 10 support

SCSI

USB Port (s)

4 x USB ports on Back Panel I/O
4 x USB ports via headers

Floppy Disk Drive

Optical Drive(s)

CDR-X8

Ext. Drive Bays

8 x 3.5" SATA Hot-swap drive bays

Int. Drive Bays

Power

720W (1+1) Redundant high-efficiency power supply with PMBus

Motherboard Manufacturer

Super X8DTU-F

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
