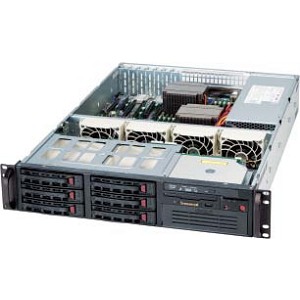

| Designed for optimal performance, the dual-processor SuperServer 6026T-TF Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density 2U form-factor. This 6026 SuperServer is ideal for network infrastructure, front-end enterprise and minimal-downtime cluster server systems. |
|
| 2 | | Socket B | |
Intel Xeon (Dual-core)
Intel Xeon (Quad-core) | | Intel 5520 | |
|
192 GB DDR3-1066/PC3-8500 Registered DDR3 SDRAM ECC
24 GB DDR3-1333/PC3-10600 Unbuffered DDR3 SDRAM ECC | | 240-pin DIMM (12 Total) | |
| Not Included | |
| Intel Serial ATA/300 Integrated RAID Controller supporting 0, 1, 1+0, 5 RAID Level(s) | |
| Matrox G200eW With 8 MB DDR2 Integrated | |
|
2 x Intel 82574L IEEE 802.3ab Gigabit Ethernet 10/100/1000Mbps Integrated
1 x Realtek RTL8201N IEEE 802.3u Fast Ethernet 10/100Mbps Integrated | |
|
1 x 5.25" External Removable Media Bay Total
6 x 3.5" Drive Bay Total Hot-swappable | |
1 x PCI Express x4 Total
2 x PCI Express x8 Total | |
|
3 x RJ-45 Network
1 x 9-pin DB-9 Serial
4 x 4-pin Type A USB 2.0 USB Rear | |
| 100 V AC to 240 V AC | | 1 x 650 W / Power Factor Correcting | |
| 4 x (80mm 6300 RPM fans) | |
| Black | | 2U Rack | | 3.50" Height x 16.80" Width x 25.60" Depth | | 50 lb | |
| QuickPath Technology:
QuickPath Interconnect supports up to 6.4 GT/s
Expansion Slot Detail:
PCI Express x16 slots have the bus speed of PCI Express x8
| | Yes | |
RoHS
80 Plus | |
| 3 Year Limited |
The above specifications are for reference only. Please contact the original manufacturer for the most updated specifications. |
|
|
|
|
|
|
- SuperServer 6026T-TF Barebone System
- 1 x Super X8DTE-F Motherboard
- 1 x 2U Black Chassis
- 1 x 823 SAS TQ BACKPLANE W/AMI 9072
- 3 x 35CM, SATA CABLE, PB FREE
- 2 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
- 3 x SATA CABLE 48CM FLAT S-S PBF
- 1 x CD For X8 series
- 2 x 2U+ PASSIVE CPU HS FOR INTEL LGA1366 X8 MB
- 1 x 2U 650W REDUNDANT FAN POWER SUPPLY
- 1 x Front ctrl cable 16 PIN TO 16 PIN, LF, Flat (L=54cm)
- 1 x US power cord 16AWG 6ft, PBF (default for high watt)
- 4 x 80X38MM 4-PIN PWM FAN W/ HUS FOR SC825
- 1 x 2U Chassis Rails. Outer slides extendable length: 28.25" to 33"
- 6 x 3.5" Hard Drive Trays
|
| |
|
|
