SKU: 850-11745C
  • Dual LGA1366 Xeon 5600 / 5500 series
  • Max 192GB DDR3 1333/1066/800MHz ECC Reg (12 DIMMs)
  • 8x 3.5" SAS bays - Hot Swap - RAID 0/1/10/5 - LSI SAS1068E
  • Intel 82576 Dual-Port Gigabit Ethernet
  • 1x PCIe X16 (X8), 2x PCIe X8, 1x PCIe X4, 2x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Server Case Form Factor
  • 2U
  • Width: 17.2" x Height: 3.5" x Depth: 25.5"
Processor
  • Supports Dual 1366-pin LGA Sockets
  • Intel Xeon Processor 5600/E5600/L5600 Series (Westmere) 40W - 130W
  • Intel Xeon Processor 5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
Chipset
  • Intel 5520 (Tylersburg) chipset
  • ICH10R + IOH-36D
Bios
32Mb SPI Flash EEPROM with AMI BIOS
Type of Memory Supported
  • 240-pin DDR3 1333/1066/800MHz ECC Register DIMM
      • OR
  • 240-pin DDR3 1333/1066/800MHz ECC Unbuffered DIMM
Maximum Memory Supported
  • 192GB ECC Registered memory
      • OR
  • 48GB ECC Unbuffered memory
Number of Memory Slots
12
Slots
  • 1 x PCI-Express X8 using X16 slot
  • 2 x PCI-Express X8
  • 1 x PCI-Express X4
  • 2 x PCI

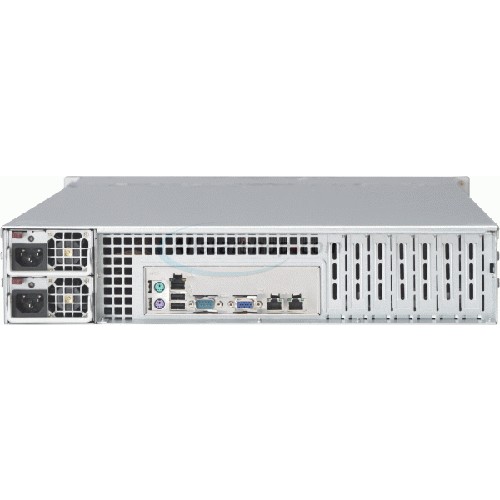

Rear I/O Ports
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Serial port
  • 1 x VGA port
  • 4 x USB ports
  • 2 x RJ45 LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
Audio
No
Video
Matrox G200eW
LAN
  • Intel 82576 Dual-Port Gigabit Ethernet Controller
  • Realtek RTL8201N PHY (dedicated IPMI)
SATA / SAS
    LSI SAS1068E:
    • 8 x SAS
    • RAID 0, 1, 10 support
    • Optional: AOC-IButton68 RAID 5 support
    ICH10R:
    • 6 x SATA 3Gb/s
    • RAID 0, 1, 5, 10 support (Windows)
    • RAID 0, 1, 10 support (Linux)
SCSI
No
USB Port (s)
    Up to 8 x USB ports:
    • 4 x USB ports on Back Panel I/O
    • 4 x USB ports via headers
Floppy Disk Drive
No
Optical Drive(s)
CDR-X8
Ext. Drive Bays
8 x 3.5" SATA Hot-swap drive bays
Int. Drive Bays
No
Power
720W (1+1) Redundant high-efficiency power supply with PMBus
Motherboard Manufacturer
Super X8DT3-F

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

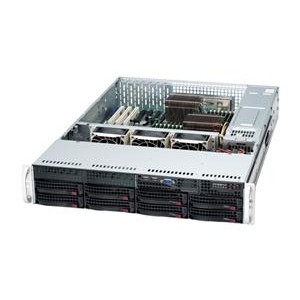

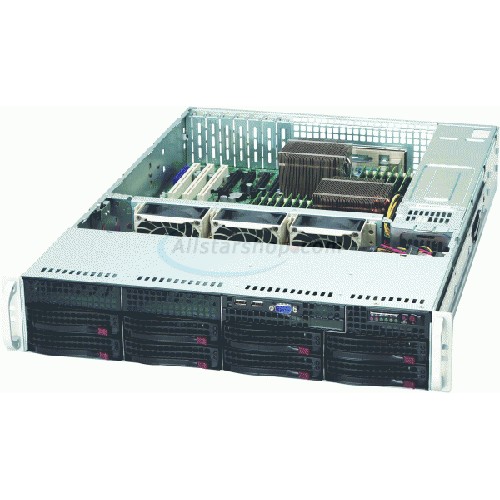

SuperServer 6026T-3RF Barebone System , 1 x Super X8DT3-F Motherboard , 1 x 2U Black Chassis , 1 x 2U Air Shroud , 1 x 825 SAS BACKPLANE W/AMI MG9072 CHIP , 1 x 61cm, SATA S-S, PBF , 2 x IPASS TO 4 SATA 46/33/23/13CM W/SIDEBAND , 1 x CD For X8 series , 2 x 2U+ PASSIVE CPU HS FOR INTEL LGA1366 X8 MB , 1 x SC825 24PIN REDUNDANT POWER DISTRIBUTOR , 2 x PWS-721P-1R power supply , 3 x 80X38MM 4-PIN PWM FAN W/ HUS FOR SC825 , 1 x Rail set, quick/quick, default for 2,3U 17.2\"W
