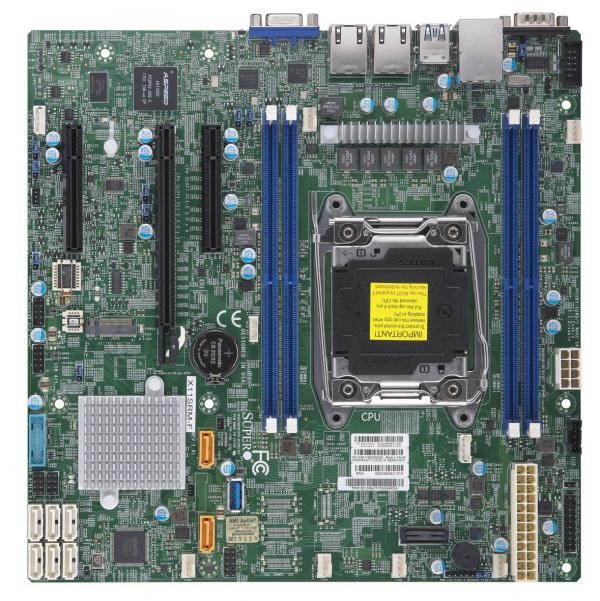

Supermicro X11SRM-F C422 LGA2066 mATX motherboard - (Discontinued)

Support: (408) 503-8000

Supermicro X11SRM-F C422 LGA2066 mATX motherboard - (Discontinued)

SKU:	800-11770C

Integrated Graphics - VGA
Max 256GB / 4 Dimm DDR4 2666 ECC LRDIMM
8x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
Up to 5x USB 3.0, 6x USB 2.0
1x PCIe X16, 2x PCIe X8

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Kingston 32GB DDR4-2666 ECC Reg CL19 DRx4 288-pin DIMM

Supermicro's X11SRM-F C422 LGA 2066 server boards support Intel Xeon W series CPU, offer high levels of performance, efficiency, security and scalability in the industry with up to: 256GB DDR4 2666MHz in 4 DIMM slots per node, 4 PCIe slots, 8 SATA 3.0 support, dual 1GbE networking and IPMI 2.0 plus KVM with dedicated LAN.

Key Features

Intel Xeon Processor W Family., Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 140W

Intel C422 Chipset

4x 288-pin DDR4 DIMM slots
Up to 256GB ECC LRDIMM
Up to 128GB ECC RDIMM

1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8

Intel i210 Dual port GbE LAN

8x SATA3 (6Gbps) ports

M.2 NGFF connector

I/O: 1 VGA, 2 COM, TPM header

5 USB 3.0 ports, 6 USB 2.0 ports

Description

Key Features

Intel Xeon Processor W Family., Single Socket R4 (LGA 2066) supported, CPU TDP support Up to 140W

Intel C422 Chipset

4x 288-pin DDR4 DIMM slots
Up to 256GB ECC LRDIMM
Up to 128GB ECC RDIMM

1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8

Intel i210 Dual port GbE LAN

8x SATA3 (6Gbps) ports

M.2 NGFF connector

I/O: 1 VGA, 2 COM, TPM header

5 USB 3.0 ports, 6 USB 2.0 ports

Specifications

CPU Support

LGA2066 socket for Intel Xeon W-series processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel C422

System Bios

UEFI AMI BIOS

Number of Memory Slots

Type of Memory Supported

288-pin DDR4 2666/2400/2133MHz ECC RDIMM, LR-DIMM

Maximum RAM

ECC LRDIMM: 256GB
ECC RDIMM: 128GB

Back Panel I/O

2 x USB 3.0 (USB 3.1 Gen1) ports

2 x USB 2.0

1 x VGA

2 x RJ45 LAN

1 x Serial port

Number of PCI/PCI Express Slots

1 x PCIe 3.0 x16
2 x PCIe 3.0 x8

Integrated SATA/SAS

8 x SATA 6Gb/s

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

# of M.2 Ports

1 x M.2 2280 support (X4 PCIe mode)

Integrated Video

ASPEED AST2500 BMC

Integrated LAN

2 x Intel i210 Gigabit Ethernet

IPMI

ASPEED AST2500

USB

2 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
2 x USB 3.0 (USB 3.1 Gen1) ports via header
1 x USB 3.0 (USB 3.1 Gen1) port internal
2 x USB 2.0 ports on Back Panel I/O
4 x USB 2.0 ports via headers

Serial/Parallel Ports

1 x Serial port on Back Panel I/O
1 x Serial port via header

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.

Package Contents

X11SRM-F
I/O plate
2x SATA cables

Compatible Accessories

Memory

Kingston 32GB DDR4-2666 ECC Reg CL19 DRx4 288-pin RDIMM

PC4-21300
Dual-rank x4

Manufacturer: Kingston

Mfg P/N: KSM26RD4/32HDI
