SKU: 910-17419
  • Host: SFF-8484
  • Target: 4x SFF-8482
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Cable Type
SAS
Cable Length
19.69" - 50cm
Connector on First End
1 x 32-pin - SFF-8484
Connector on Second End
4 x 22-pin - SFF-8482
Grade/Rating/Specifics
26 AWG solid silver plated CU on pairs 1/2
Conductor
Copper
Insulation
Cellular Polyolefin
Jacket
PVC
Color
Red
Additional information

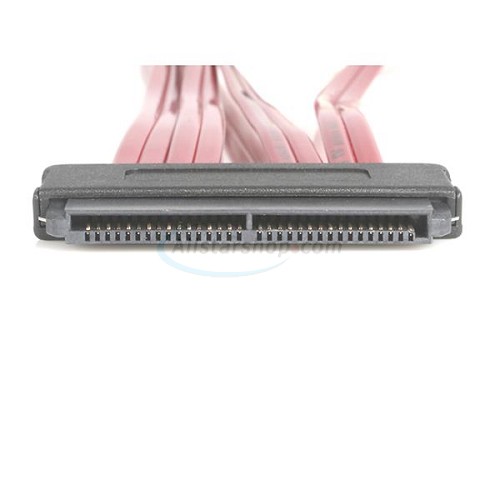

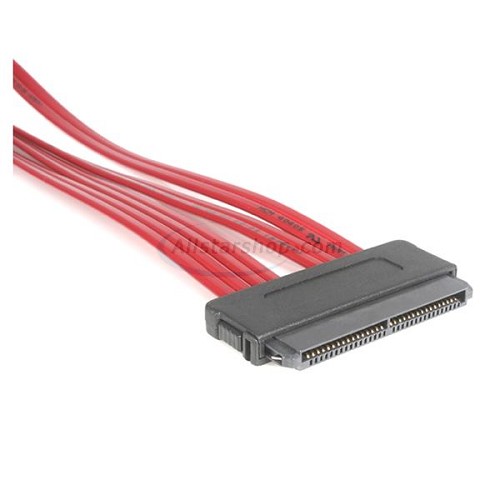

Connector P0:

  • SAS 4i cable receptacle with gold plating

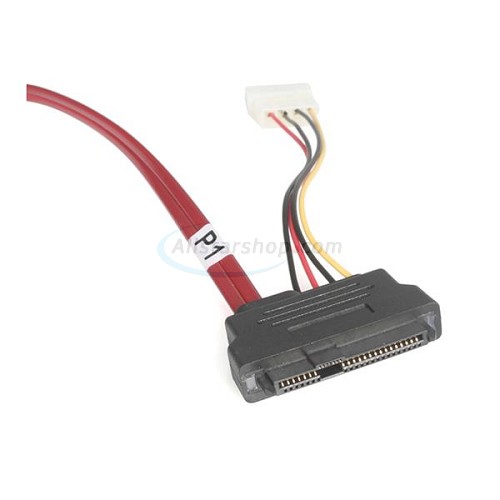

    Connector P1 - P4:

  • 29 pin internal connector

    Connector P5 - P8:

  • 4 pin power male connector

    Power Cable:

  • UL 1007 22AWG 80 C 300V

    Shield:

  • Four 28 AWG solid drain wires on pairs 1/2 and wrapped with aluminum polyester tape
  • The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: Limited Lifetime Warranty
    • Warranty Provider: StarTech
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact StarTech at (519) 455-4931
    • Technical Support: StarTech (519) 455-4931

    Package Contents

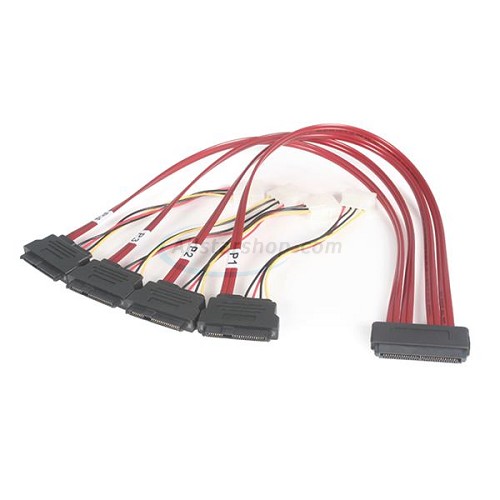

    • Startech SFF8484 to SFF8482 SAS Internal Cable with Power - 0.5m
