SKU: 331-26029B
  • Resolution: 1920 x 1080
  • Brightness: 250 cd/m2
  • Contrast Ratio: 2000:1
  • Response Time: 18ms
  • 1 x VGA / 1 x DVI-D / 1 x HDMI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Viewable Area
21.5" (16:9)
Brightness
  • Touchscreen Off: 250 cd/m2
  • Touchscreen On: 225 cd/m2
    • Contrast Ratio
    2000:1
    Response Time
    18 ms
    Pixel Pitch
    0.2482 mm
    Resolution
    1920 x 1080
    Analog Input
    1 x VGA
    Digital Input
    1 x DVI-D
    HDMI Input
    1 x HDMI
    Built-in Speakers
    2 x 2W
    Built-in USB Hub
    2 x USB Downstream
    Power Consumption
    28W
    Dimensions
    20.57" x 15.16" x 9.39" (522.4 mm x 385.0 mm x 238.5 mm)
    Wall Mount (VESA)
    100 x 100 mm
    Additional information
    Touchscreen
    General Information
    Manufacturer
    Planar Systems, Inc
    Manufacturer Part Number
    997-7251-00
    Manufacturer Website Address
    www.planar.com
    Brand Name
    Planar
    Product Model
    PCT2265
    Product Type
    LCD Touchscreen Monitor
    Technical Information
    Screen Size
    22"
    Screen Mode
    Full HD
    Response Time
    18 ms
    Aspect Ratio
    16:9
    Horizontal Viewing Angle
    178°
    Vertical Viewing Angle
    178°
    Adjustable Display Angle
    Yes
    Mount Type
    Desk Mountable
    Backlight Technology
    Edge LED
    HDCP Supported
    Yes
    Features
    Security Lock
    Video
    Maximum Resolution
    1920 x 1080
    Standard Refresh Rate
    76 Hz
    Color Supported
    16.7 Million Colors
    Contrast Ratio
    2,000:1
    Brightness
    250 Nit
    Audio
    Speakers
    Yes
    Touchscreen Information
    Touchscreen
    Yes
    Touchscreen Type
    Projected Capacitive
    Multi-touch Screen
    Yes

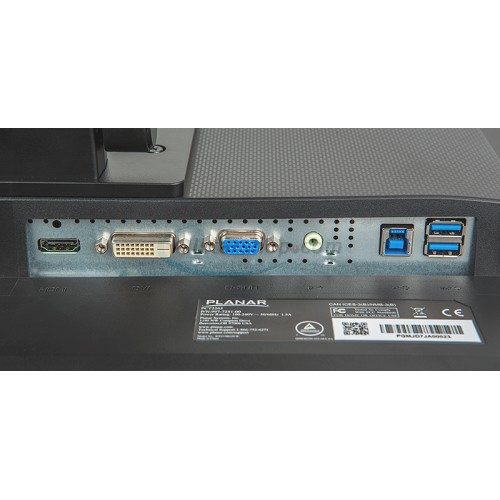

    Interfaces/Ports
    DVI
    Yes
    HDMI
    Yes
    USB
    Yes
    USB Standard
    USB 3.0
    VGA
    Yes
    Headphone
    Yes
    Built-in Devices
    Built-in Devices
  • Speaker
  • USB Hub
    • Power Description
    Input Voltage
  • 220 V AC
  • 110 V AC
    • Operating Power Consumption
    28 W
    Standby Power Consumption
    5 W
    Off-Mode Power Consumption
    5 W
    Physical Characteristics
    VESA Mount Compatible
    Yes
    VESA Mount Standard
    100 x 100
    Color
    Black
    Height
    12.5"
    Depth
    2.5"
    Height with Stand
    15.16"
    Width with Stand
    20.57"
    Depth with Stand
    9.39"
    Miscellaneous
    Certifications & Standards
    • cTUVus
    • CE
    • FCC-B
    Green Compliant
    Yes
    Green Compliance Certificate/Authority
    RoHS 2

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 3 years
    • Warranty Provider: Planar
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Planar at 866-752-6271
    • Technical Support: Planar 866-752-6271

    Package Contents

    • PCT2265 22" Wide Multi-Touch Monitor
    • Power Cord
    • VGA Cable
    • DVI-D cable
    • HDMI Cable
    • USB Cable (A to B)
    • Audioin Cable
    • User's Guide
