SKU: 330-04084A
  • Resolution: 1600x900
  • Brightness: 250 cd/m2
  • Contrast Ratio: 1,000:1
  • DisplayPort / DVI-D / VGA
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Viewable Area
20 inch
Brightness
250 Nit
Contrast Ratio
1000:1
Response Time
5ms
Viewing Angle
  • Horizontal: 178°
  • Vertical: 178°
    • Pixel Pitch
    0.28mm
    Resolution
    1600x900
    Horizontal Frequency
    31.5-82.3 kHz
    Vertical Frequency
    56-75 Hz
    Analog Input
    15-pin VGA
    Digital Input
  • DVI-D
  • DisplayPort
    • Built-in Speakers
    No
    Built-in USB Hub
    No
    Built-in TV Tuner
    No

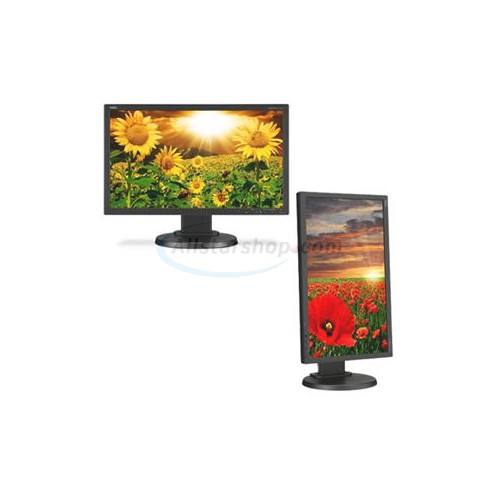

    Pivot Function
    Yes
    Power Consumption
  • Typical: 28W>/li>
  • Standby: 0.34W
    • Dimensions
  • w/ Stand: 18.8 x 14.1-18.5 x 8.4 in.
  • w/o Stand: 18.8 x 11.2 x 2.2 in.
    • Wall Mount (VESA)
    100x100mm
    Technical Information
    Number of Screens
    1
    Maximum Response Time
    5 ms
    Aspect Ratio
    16:9
    Horizontal Viewing Angle
    178°
    Vertical Viewing Angle
    178°
    Adjustable Display Angle
    Yes
    Backlight Technology
    LED
    HDCP Support
    Yes
    Video
    Maximum Refresh Rate
    75 Hz
    Interfaces/Ports
    DVI
    Yes
    VGA
    Yes
    DisplayPort
    Yes
    Power Description
    Operating Power Consumption
    25 W
    Standby Power Consumption
    420 mW
    Physical Characteristics
    VESA Mount Compatible
    Yes
    VESA Mount Standard
    100 x 100
    Height
    11.20"
    Depth
    2.20"
    Height with Stand
    14.10"
    Width with Stand
    18.80"
    Depth with Stand
    8.40"
    Weight (Approximate)
    11.90 lb
    Miscellaneous
    Certifications & Standards
  • Windows 7-certified
  • ISO 9241-307 Class I
    • Platform Support
    PC
    Green Compliance
    Yes
    Green Compliance Certificate/Authority
  • EPEAT Silver
  • Energy Star
  • RoHS
  • TCO '05
    • Warranty
    Standard Warranty
    3 Year
    General Information
    Manufacturer
    NEC Display Solutions
    Manufacturer Part Number
    E201W-BK
    Manufacturer Website Address
    www.necdisplay.com
    Brand Name
    NEC Display
    Product Line
    MultiSync
    Product Model
    E201W
    Product Type
    LCD Monitor

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 3 years
    • Warranty Provider: NEC
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact NEC at (800) 632-4662 Or visit NEC customer service online.
    • Technical Support: NEC (800) 632-4662
