SKU: 990-17955
  • Motherboard: Mini-ITX
  • 9 Drive Bays: Ext - 1 x Slim/2.5/3.5 / Int - 3 x 3.5", 5 x 2.5"
  • Front Panel I/O: 2 x USB 3.0, Audio In & Out
  • Fans Installed: 1 x 140mm Top
  • Max VGA Card Length: 270mm / Max CPU Cooler Height: 140mm
Our Price: Login to see price
Discontinued - Not orderable


Specifications

M/B Format
Mini-ITX
Ext. Bay (s)
1 x Slim ODD or 1 x 2.5"/3.5"
Int. Bay (s)
  • 3 x 3.5"
  • 5 x 2.5"
    • Cooling Fan (s)
    Installed:
    • 1 x 140mm Top
    Optional:
    • 2 x 80mm Rear
    • 1 x 120mm Top
    • 2 x 120mm Base
    Power Supply
    ATX/SFX Max PSU Length: 150mm
    USB Port (s)
    2 x USB 3.0
    Audio Port
    Audio In & Out
    Expansion Slots
    2
    Dimensions
    201mm x 407mm x 276mm

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 1 year
    • Warranty Provider: Lian Li
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Lian Li at
    • Technical Support: Lian Li

    Package Contents

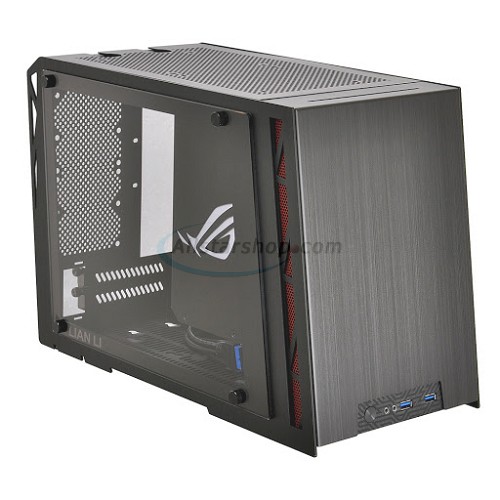

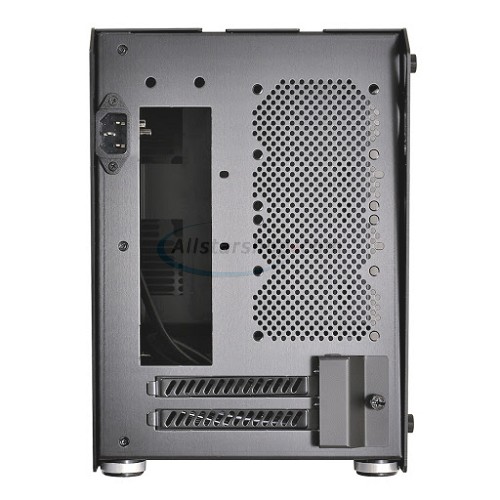

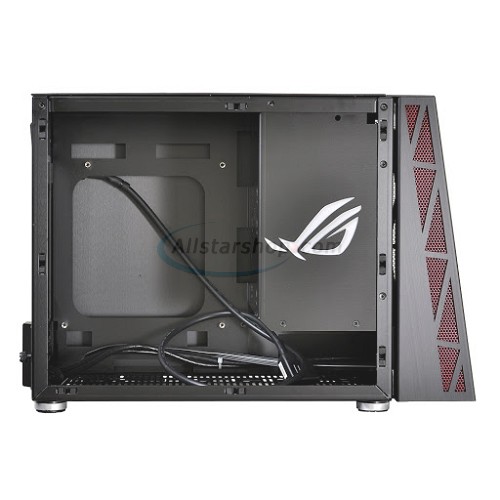

    • Lian Li PC-Q17WX ROG Gaming Mini Tower Case
    • Mounting Hardware
