Lian Li PC-A04 Mini Tower Case

Lian Li PC-A04 Mini Tower Case - (Discontinued)

SKU:

990-17948

Motherboards: Micro-ATX, Mini-ITX
Drive Bays: Ext - 2 x 5.25" / Int - 7 x 3.5", 1 x 2.5"
Front I/O: 1 x USB 3.0, 1 x USB 2.0, 1 x e-SATA, HD Audio
Fans: 2 x 120mm Front / 1 x 120mm Rear
Max VGA Length: 370mm / Max CPU Cooler Height: 140mm

Our Price:	Login to see price
Discontinued	- Not orderable

Similar Items

: Fractal Design Node 304 Mini-ITX Chassis

Small or big? Three 120mm fans, seven 3.5-inch HDDs and even high-end video cards… still think it's small?

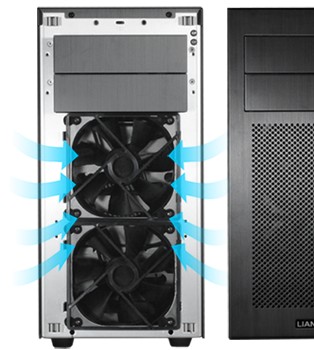

Small Case with Two 120mm Fans
The fans intake and push cold air through the case in high volumes with low RPMs.

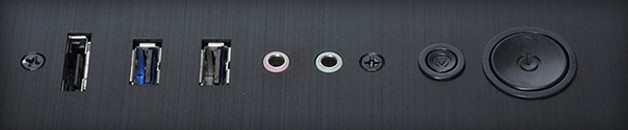

USB 3.0 Multi-media I/O ports
Users can easily access USB3.0, e-SATA and HD Audio.

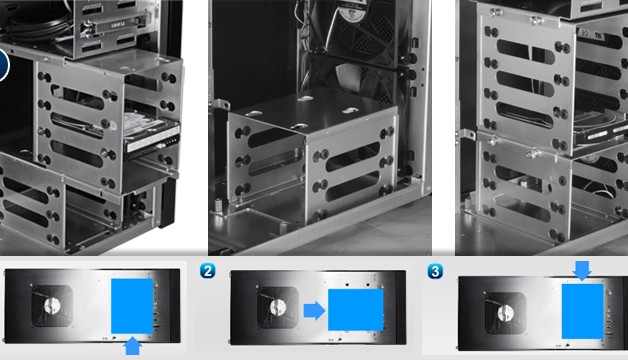

Change the Module Racks' direction
Up to seven 3.5-inch HDDs. Hard disks can face the right, left or backward directions.

Switch the HDD Module Racks
Either hard disk module can be on the top of the other, installed using anti-vibration thumb screws.

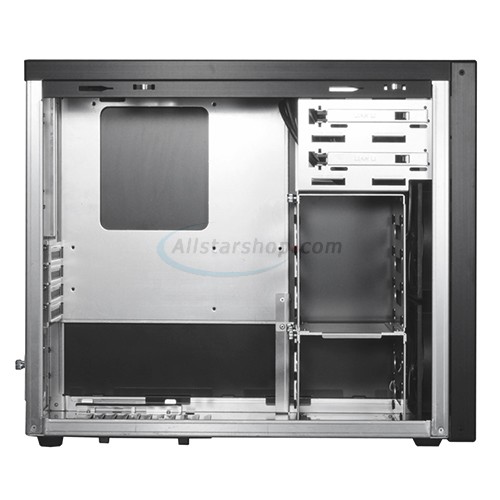

370mm Maximum Video Card Space
Remove the HDD cage to access a 370mm long space for high-end video cards.

Description

Small or big? Three 120mm fans, seven 3.5-inch HDDs and even high-end video cards… still think it's small?

Small Case with Two 120mm Fans
The fans intake and push cold air through the case in high volumes with low RPMs.

USB 3.0 Multi-media I/O ports
Users can easily access USB3.0, e-SATA and HD Audio.

Change the Module Racks' direction
Up to seven 3.5-inch HDDs. Hard disks can face the right, left or backward directions.

Switch the HDD Module Racks
Either hard disk module can be on the top of the other, installed using anti-vibration thumb screws.

370mm Maximum Video Card Space
Remove the HDD cage to access a 370mm long space for high-end video cards.

Specifications

M/B Format

Micro ATX

Mini ITX

Ext. Bay (s)

1 x 5.25"

Int. Bay (s)

7 x 3.5"

1 x 2.5"

Cooling Fan (s)

Front: 2 x 120mm

Rear: 1 x 120mm

Power Supply

N/A

USB Port (s)

1 x USB 3.0

1 x USB 2.0

eSATA port

1 x eSATA

Audio Port

HD Audio

Expansion Slots

Dimensions

460mm x 386mm x 188mm

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Lian Li
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Lian Li at
Technical Support: Lian Li

Package Contents

Lian Li PC-A04
