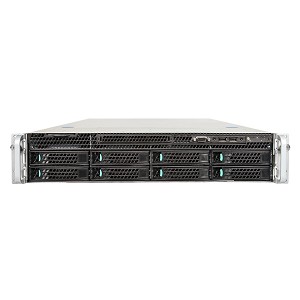

Intel R2308SC2SHDR 2x LGA1356 Xeon C602 2U w/2x 460W

Intel R2308SC2SHDR 2x LGA1356 Xeon C602 2U w/2x 460W - (Discontinued)

Support: (800) 538-3373

Intel R2308SC2SHDR 2x LGA1356 Xeon C602 2U w/2x 460W - (Discontinued)

SKU:	850-28043A

2x LGA1356 Xeon E5-2400 series
Max 128GB DDR3 1600/1333/1066 ECC Reg (8 DIMMs)
8 x 3.5" SATA bays - Hot Swap - RAID 0, 1, 10
Integrated IPMI 2.0

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Kingston 32GB DDR5-5600 CL46 1Rx8 288-pin DIMM

: Solidigm D7-PS1010 3.84TB PCIe 5.0 x4 U.2 NVMe SSD

: Solidigm D7-PS1010 7.68TB PCIe 5.0 x4 U.2 NVMe SSD

The 2U Intel Server System R2308SC2SHDR delivers great storage flexibility with support for up to 8 hot-swap 3.5" SATA 6G drives standard and SAS 6G with an optional Intel RAID C600 Storage activation key or a discrete controller (both available separately) and Fix 600W 80 PLUS Silver certified power supplies and support for up to five low-profile host bus adapters (HBAs) for great I/O expandability.

Description

Specifications

Server Case Form Factor

2U
3.5" x 17.2" x 24.75"

Processor

Intel Xeon processor E5-2400
Dual (Not Included)

Chipset

Intel C602 chipset

Type of Memory Supported

240-pin DDR3 1600/1333/1066/800 ECC Registered memory (RDIMM)
240-pin DDR3 1333/1066 Unbuffered memory (UDIMM)

Maximum Memory Supported

128GB

Number of Memory Slots

Slots

1 x PCI-Express 3.0 X16
1 x PCI-Express 3.0 X8
1 x PCI-Express 3.0 X4 using X8 slot
1 x PCI-Express 2.0 X4 using X8 slot
1 x PCI

Rear I/O Ports

4 x USB 2.0 ports
1 x Serial port
1 x 15-pin VGA
2 x RJ-45 LAN ports

Audio

Video

Integrated 2D video controller

LAN

2 x Intel 82574L Gigabit Ethernet Controllers

SATA / SAS

2 x SATA 6Gb/s
4 x SATA 3Gb/s
Up to eight SAS connectors at 3Gbps with optional IntelC600 RAID Upgrade Keys

USB Port (s)

4 x USB 2.0 on Back Panel I/O
2 x USB 2.0 on Front Panel

Ext. Drive Bays

8 x 3.5" hot-swap Bay

Power

460W AC Common Redundant Power Supply (Gold Efficiency)

Motherboard Manufacturer

Intel Server Board S2400SC2

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Intel
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Intel at (800) 538-3373
Technical Support: Intel (800) 538-3373
