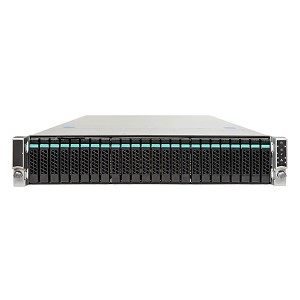

SKU: 850-28048B
  • 2x LGA2011 Xeon E5-2600 series
  • Max 768GB DDR3 1600/1333/1066/ ECC Reg (24 DIMMs)
  • 24x 2.5" SAS bays - Hot Swap
  • Intel i350 Quad-Port Gigabit Ethernet
  • Software RAID 0/1/10
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Server Case Form Factor
  • 2U
  • 3.44" x 16.93" x 27.95"
    • Processor
    2x Intel Xeon processor E5-2600 series (not included)
    Chipset
    Intel C602
    Type of Memory Supported
  • 240-pin DDR3 1600/1333/1066/800
  • Unbuffered DDR3 (UDIMM)
  • Registered DDR3 (RDIMM)
  • Load Reduced DDR3 (LRDIMM)
    • Maximum Memory Supported
    768GB
    Number of Memory Slots
    24
    Slots
    2 (total) / 2 (free) x CPU
    24 (total) / 24 (free) x DIMM 240-pin
    2 (total) / 2 (free) x PCIe 3.0 x16
    6 (total) / 6 (free) x PCIe 3.0 x8
    1 (total) / 1 (free) x expansion slot
    Rear I/O Ports
  • 3 x USB 2.0
  • 1 x VGA
  • 4 x RJ45 LAN Ports
  • 1 x RJ-45 Serial- A Port
    • Audio
    No
    Video
    Integrated 2D Video Controller 16 MB DDR3 Memory
    LAN
    Intel I350 Quad-Port Gigabit Ethernet Controller
    USB Port (s)
    5 USB 2.0:
    • 3 x USB 2.0 on Back Panel I/O
    • 2 x USB 2.0 on Front I/O Panel
    Optical Drive(s)
    No
    Ext. Drive Bays
    24x 2.5" Hot-swap drive bays
    Int. Drive Bays
    2x 2.5" SSD mounting on airduct
    Power
    2x 750W
    Motherboard Manufacturer
    Intel Server Board S2600GZ4
    Manageability
    IPMI 2.0
    Type
    Server
    Product Form Factor
    Rack-mountable - 2U
    Server Scalability
    2-way
    Front Accessible Bays Qty
    1
    Hot-Swap Bays Qty
    24
    Processor / Chipset
    CPU
    No CPU
    Max CPU Qty
    2
    CPU Upgradability
    Upgradable
    CPU Socket
    LGA2011 Socket
    Chipset Type
    Intel C600-A
    RAM
    Installed Size
    0 MB
    Technology
    DDR3 SDRAM
    Form Factor
    DIMM 240-pin
    Features
    Unbuffered, registered, quad channel memory architecture, Load-Reduced DIMM (LRDIMM)
    Storage Controller
    Controller Interface Type
    SATA-600
    Channel Qty
    2
    Storage Controller (2nd)
    RAID Level
    RAID 0, RAID 1, RAID 10
    Monitor
    Monitor Type
    None.
    Graphics Controller
    Video Memory
    16 MB DDR3 SDRAM
    Video Interfaces
    VGA
    Networking
    Ethernet Ports
    4 x Gigabit Ethernet
    Data Link Protocol
    Ethernet, Fast Ethernet, Gigabit Ethernet
    Remote Management Protocol
    IPMI 2.0
    Expansion / Connectivity
    Bays
    24 (total) / 24 (free) x hot-swap 2.5"
    1 (total) / 1 (free) x external 5.25" Slim Line
    Interfaces
    1 x VGA
    3 x USB 2.0
    1 x serial
    4 x LAN (Gigabit Ethernet)
    1 x management
    Miscellaneous
    Included Accessories
    2 x CPU Heatsink, air duct, 2 x riser cards, rack rail kit
    Cables Included
    Serial ATA / SAS cable ( 8 pcs.)
    Power
    Device Type
    Power supply
    Power Redundancy
    Yes
    Power Redundancy Scheme
    1+1
    Installed Qty
    2
    Max Supported Qty
    2
    Voltage Required
    AC 120/230 V ( 50/60 Hz )
    Power Provided
    750 Watt
    Manufacturer Warranty
    Service & Support
    3 years warranty
    Service & Support Details
    Limited warranty - 3 years
    Dimensions & Weight
    Depth
    28 in
    Height
    3.4 in
    Environmental Parameters
    Min Operating Temperature
    50 °F
    Max Operating Temperature
    95 °F

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 3 years
    • Warranty Provider: Intel
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Intel at (800) 538-3373
    • Technical Support: Intel (800) 538-3373

    Package Contents

    • Intel 2U R2224GZ4GC 2U barebone
    • Intel Server Board S2600GZ4
    • 1x control panel on rack handle
    • 24x 2.5" hard drive carriers
    • 3x hot swap backplanes
    • 5x Fans
    • 8x SFF-8087 to SFF-8087 cables
    • 2x raiser cards (2x FHFL / 1x FHHHL)
    • 1x Airduct
    • 2x 750W PSU
    • 1 set Value rails
