SKU: 850-28068
  • Intel Core i5-8259U 4 cores/8 threads / 2.3 - 3.8 GHz / 6MB buffer
  • Intel Iris Plus Graphics 655 - HDMI / Thunderbolt 3
  • 2x DDR4-2400 SODIMM slots / 1x 2.5" SATA / 1x M.2 slot
  • 5x USB 3.1 (1x USB-C) / 802.11ac / Bluetooth 5.0
  • MicroSDXC slot / Dual-array Microphones
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Processor
Intel Core i5-8259U quad-core, 2.3 / 3.8 GHz, soldered-down
Type of Memory Supported
DDR4-2400 1.2V SO-DIMM
Installed Memory
0
Maximum Memory Supported
32GB
Number of Memory Slots
2
I/O Ports

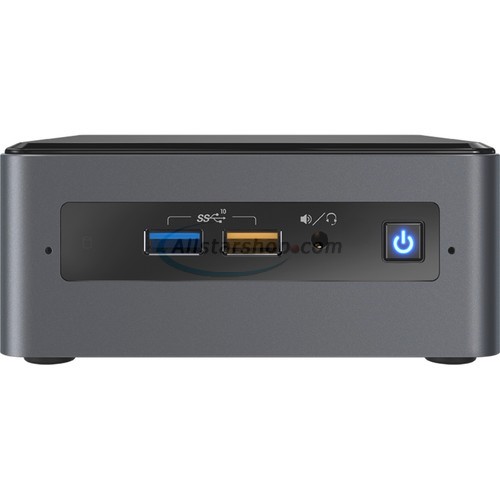

    Front:
    • 2 x USB 3.1 Gen 2 Type-A ports

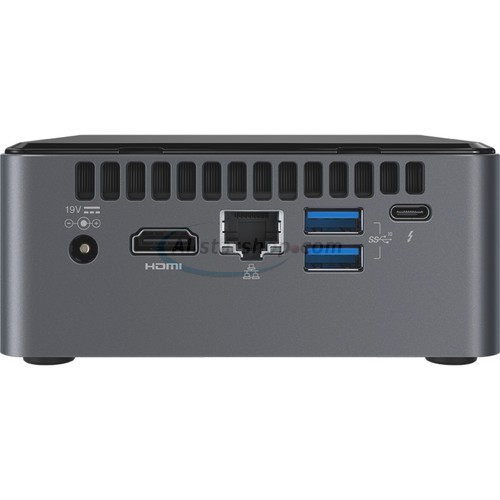

    Back:
    • 2 x USB 3.1 Gen 2 Type-A ports
    • 1 x USB 3.1 Gen 2 Type-C port (Thunderbolt)
    • 1 x HDMI
    • 1 x RJ 45 LAN
Audio
  • Intel High Definition Audio
  • Dual-Array Microphones and Audio Jack
  • Video
  • Intel Iris Plus Graphics 655
  • HDMI 2.0
  • DP 1.2 via USB-C
  • LAN
  • Intel I219V Gigabit Ethernet
  • Integrated WiFi Intel Wireless-AC 9560 + Bluetooth 5.0
  • Storage
    • 1 x SATA 6 Gb/s
    • 1 x M.2 2280 (key type M and B+M) modules
    USB Port (s)
      Front:
      • 2 x USB 3.1 Gen 2 Type-A ports
      Back:
      • 2 x USB 3.1 Gen 2 Type-A ports
      • 1 x USB 3.1 Gen 2 Type-C port (Thunderbolt)
    Card Reader
    microSDXC with UHS-I support
    Power
    19V, 90W power brick
    Dimensions
    4.60" x 4.40" x 2.01"
    Motherboard Manufacturer
    Intel

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 3 years
    • Warranty Provider: Intel
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Intel at (800) 538-3373
    • Technical Support: Intel (800) 538-3373

    Compatible Accessories

    Memory

    Crucial 16GB DDR4-2400 PC4-19200 CL17 Notebook SODIMM
    • 1 x 16GB module
    • Dual Ranked x8
    Manufacturer: Crucial
    Mfg P/N: CT16G4SFD824A
    Availability: Usually ships with 1-2 business days
    Crucial 8GB DDR4-2400 PC4-19200 CL17 Notebook SODIMM
    • SR x 8
    Manufacturer: Crucial
    Mfg P/N: CT8G4SFS824A
    Availability: Usually ships with 1-2 business days
