SKU: 800-28105A
  • Integrated Intel Graphics - DVI-D / HDMI / VGA
  • Max 16GB / 4 x Dimm DDR3 1333/1066
  • 6 x SATA / 0 x IDE / 0 x FDD
  • Up to 12 x USB 2.0
  • 1 x PCI-E 2.0 X16, 2 x PCI-E X1, 3 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1156 socket:
    • Intel Core i7
    • Intel Core i5
    • Intel Core i3
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel H55
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 1333/1066 Memory
Maximum RAM
16GB
Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse combo
  • 6 x USB 2.0 ports
  • 1 x 15-pin VGA
  • 1 x HDMI
  • 1 x DVI-D
  • 1 x RJ45 LAN port
  • 1 x Audio I/O
    Number of PCI/PCI-Express Slots
    • 1 x PCI-Express 2.0 X16
    • 2 x PCI-Express X1
    • 3 x PCI
    On-Board EIDE/Floppy
    • No PATA connector
    • No Floppy drive connector
    Integrated SATA/SAS
      6 x SATA II 3.0Gb/s:
      • 2 x SATA ports compatible with eSATA dongles
    Integrated SATA/SAS RAID
    No
    Integrated Audio
    Realtek ALC888S 8-Channel High Definition Audio CODEC
    Integrated Video
  • Onboard motherboard display functionality requires a processor with Intel Graphics Technology
    • Integrated LAN
    Intel 82578DC Gigabit Ethernet Controller
    USB
      Up to 12 x USB ports:
      • 6 x USB ports on Back Panel I/O
      • 6 x USB ports via headers
    IEEE 1394
    No
    Serial/Parallel Ports
    • 1 x Parallel port via header
    • 1 x Serial port via header
    PS/2 Ports
    • 1 x PS/2 Keyboard / Mouse
    Form Factor
    ATX
    Dimensions
    11.6" x 9.6"
    Additional information
    • No Floppy drive connector
    • No IDE connector

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 3 years
    • Warranty Provider: Intel
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Intel at (800) 538-3373
    • Technical Support: Intel (800) 538-3373

    Package Contents

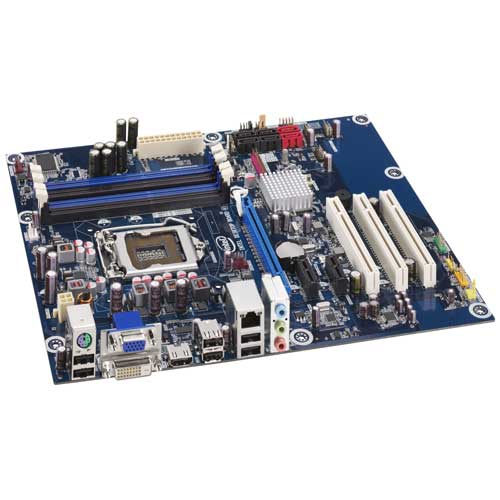

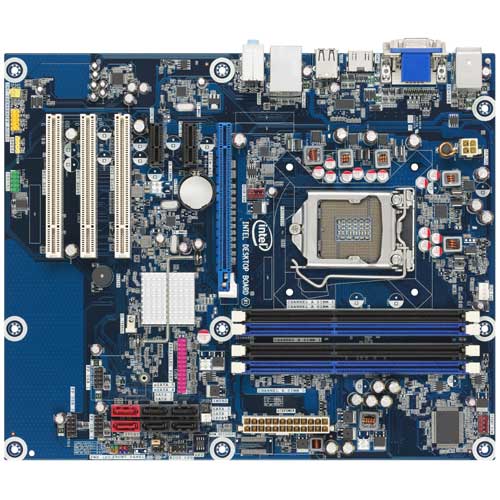

    • Intel DH55HC ATX motherboard
    • SATA cables
    • I/O plate
    • Board layout label
    • Driver CD
    • Quick Installation Guide
