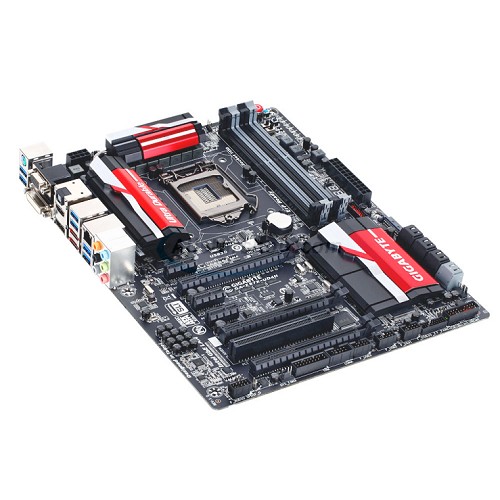

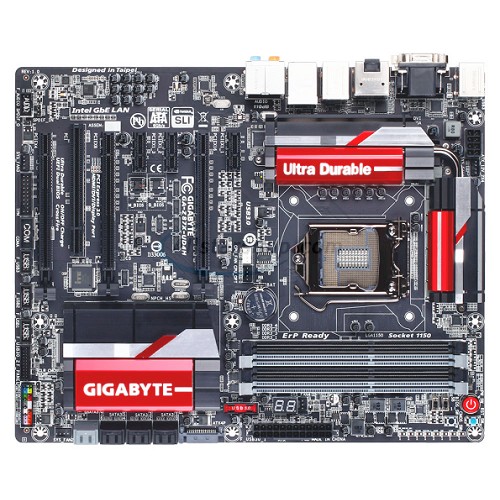

SKU: 800-58030A
  • Integrated Intel Graphics - HDMI / DVI / DisplayPort / VGA
  • Max 32GB / 4 Dimm DDR3 1600/1333
  • 8 x SATA 6Gb/s / RAID 0, 1, 10, 5 / 0 x IDE / 0 x FDD
  • Up to 10 x USB 3.0, 6 x USB 2.0
  • 1 x PCIe 3.0 X16, 1 x PCIe X8, 1 x PCIe X4, 3 x PCIe X1, 1 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
Socket 1150 for 4th generation Intel Core processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z87 chipset
Video card slot
PCI-Express 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 1600/1333
Maximum RAM
32GB

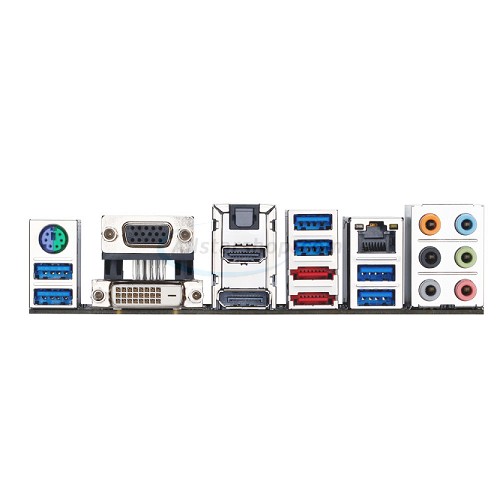

Back Panel I/O
  • 1 x PS/2 Keyboard/mouse combo
  • 6 x USB 3.0 ports
  • 2 x eSATA 6Gb/s
  • 1 x Display port
  • 1 x HDMI port
  • 1 x DVI-D port
  • 1 x VGA port
  • 1 x RJ45 LAN port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCI-Express 3.0 X16
  • 1 x PCI-Express 2.0 X8 using X16 slot
  • 1 x PCI-Express 2.0 X4 using X16 slot
  • 3 x PCI-Express 2.0 X1
  • 1 x PCI
On-Board EIDE/Floppy
No
Integrated SATA/SAS
    8 x SATA 6Gb/s:
    • 6 x SATA 6Gb/s through the Intel Z87 Express
    • 2 x SATA 6Gb/s or eSATA 6Gb/s through Marvell 88SE9230
Integrated SATA/SAS RAID
RAID 0, 1, 5 and 10
Integrated Audio
Realtek ALC898 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics
Integrated LAN
Intel Gigabit Ethernet
USB
    Up to 14 x USB ports:
    • 6 x USB 3.0 ports on Back Panel I/O
    • 4 x USB 3.0 ports via headers
    • 4 x USB 2.0 ports via headers
IEEE 1394
No
Serial/Parallel Ports
No
PS/2 Ports
1 x PS/2 keyboard/mouse combo port
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
