SKU: 800-58103A
  • Integrated Intel Graphics - DVI / 2x HDMI
  • Max 32GB / 2x DDR4 DIMM / Up to 2400
  • 6x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
  • Up to 7x USB 3.0 (1x USB-C), 2x USB 2.0
  • 1x PCIe X16
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1151 socket for 7th & 6th Generation Intel Core i7/ i5/ i3/Pentium/Celeron Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel H270 chipset
System Bios
AMI UEFI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
2
Type of Memory Supported
288-pin DDR4 2400/2133 MHz, non-ECC, un-buffered memory
Maximum RAM
32GB

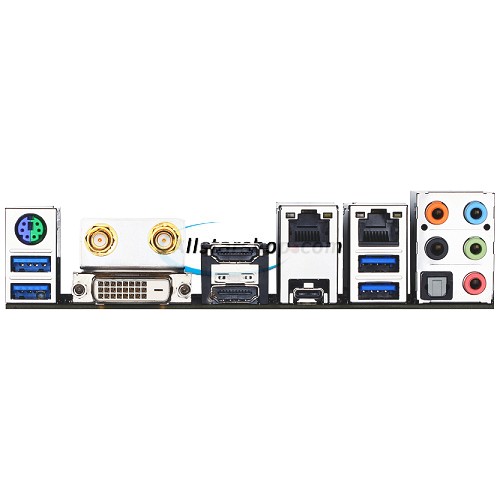

Back Panel I/O
  • 1 x PS/2 Keyboard/mouse combo port
  • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port
  • 4 x USB 3.0 (USB 3.1 Gen1) ports
  • 1 x DVI-D
  • 2 x HDMI
  • 2 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
1 x PCIe 3.0 X16
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (SATA mode & X4 PCIe mode) on the back of the motherboard
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek S1220A 8-channel high definition audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
2 x Intel Gigabit LAN
USB
    Up to 9 x USB ports:
    • 4 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 2 x USB 2.0 ports via headers
PS/2 Ports
1 x PS/2 keyboard/mouse combo port
Form Factor
mini-ITX
Dimensions
6.9" x 6.9"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

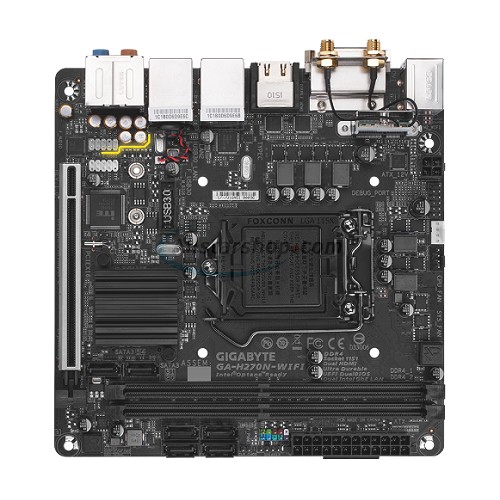

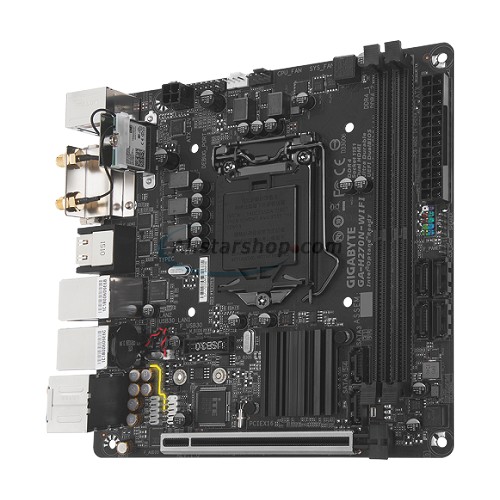

  • GA-H270N-WIFI motherboard
  • User's manual
  • I/O Shield
  • 2 x SATA 6Gb/s cables
  • 1 x Antenna
