SKU: 800-58047E
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 16GB / 2 SODimm DDR3L 1600
  • 4x SATA, 1x M.2
  • Up to 6x USB 3.0, 5x USB 2.0
  • 1x PCIe X4
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1151 socket for 6th Generation Intel Core i7/ i5/ i3/Pentium/Celeron Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel H170 chipset
System Bios
UEFI AMI BIOS
Number of Memory Slots
2
Type of Memory Supported
204-pin DDR3L SODIM
Maximum RAM
16GB

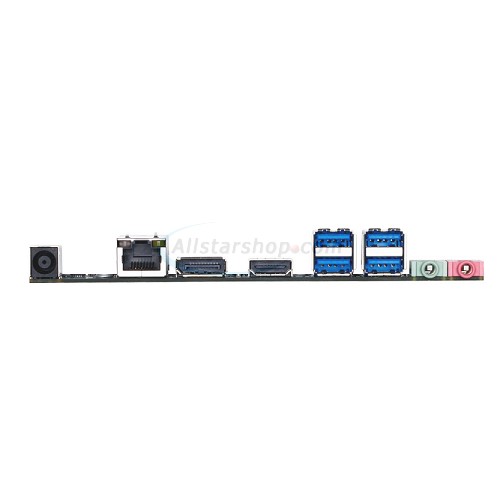

Back Panel I/O
  • 1 x DC-In Power connector
  • 4 x USB 3.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x Audio Jack
Number of PCI/PCI-Express Slots
1 x PCIe X4 (Supports 25W only)
Integrated SATA/SAS
4 x SATA 6Gb/s
# of SATA Express Ports
Not Available
# of M.2 Ports
  • 1 x M.2 for the wireless communication module
  • 1 x M.2 for storage
Integrated Audio
Realtek ALC887 8-channel high definition audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Realtek Gigabit LAN
USB
    Up to 11 x USB ports:
    • 4 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 5 x USB 2.0 ports via headers
eSATA
Not Available
IEEE 1394
Not Available
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
Not Available
Form Factor
Mini-ITX
Dimensions
6.9" x 6.9"
Additional information
    Connector Dimension:
    • 7.4 x 5.1mm, 150W = 19V / 7.89A
    • 7.4 x 5.1mm, 180W = 19V / 9.47A

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • GA-H170TN motherboard
  • User's manual
  • I/O Shield
  • Supporting DVD
  • 2 x SATA 6Gb/s cables
  • 1 x Serial port cable
