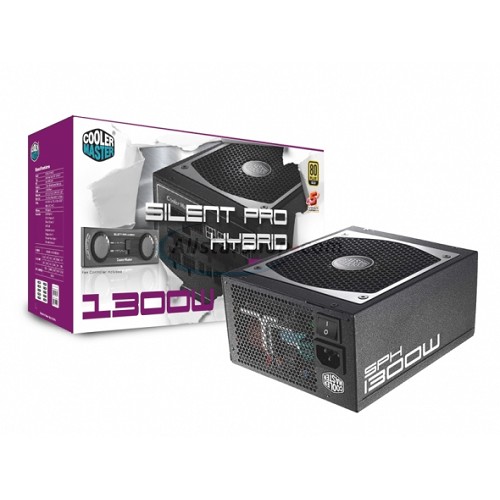

Cooler Master RSD00-SPHAD3-US Silent Pro Hybrid ATX12V & EPS12V 1300W PSU (Modular)

Cooler Master Silent Pro Hybrid ATX12V & EPS12V 1300W PSU (Modular) - (Discontinued)

SKU:	992-11429B

Efficiency: 90% - 80 PLUS Gold
1 x +12V Rail
6 x 6+2-pin PCI-E connector
MTBF: 100,000 hours
Modular Cables

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Kingston 32GB DDR5-5600 CL46 1Rx8 288-pin DIMM

: Solidigm D7-PS1010 3.84TB PCIe 5.0 x4 U.2 NVMe SSD

: Solidigm D7-PS1010 7.68TB PCIe 5.0 x4 U.2 NVMe SSD

The Sient Pro Hybrid 1300W is part of Cooler Master’s first fully modular power supply series with integrated dual 7V fan ports. It utilizes a single powerful +12V rail that operates at over 90% efficiency and carries an 80Plus Gold certification.

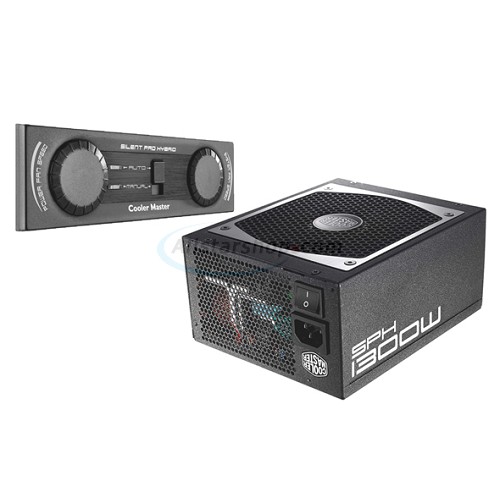

A fan speed controller is included in the package. It occupies a 5.25” drive bay and enables a user to control the Silent Pro Hybrid 135mm Silent Hydraulic Bearing fan along with up to three system fans.

Output Connectors

20-pin Main Power x 1	4-pin+4 12V x 2


SATA x 12	4-pin Peripheral x 5	4-pin Floppy x 1	8-pin (6+2)pin PCI-E x 6

Description

20-pin Main Power x 1	4-pin+4 12V x 2


SATA x 12	4-pin Peripheral x 5	4-pin Floppy x 1	8-pin (6+2)pin PCI-E x 6

Specifications

Efficiency

Typ. 90%

Fans

1 x 135 mm

MTBF

100,000 Hours

Protection

Over Voltage

Over Current

Over Temperature

Under Voltage

Version Support

ATX 12V v2.3

EPS 12V v2.92

Current

12-6A

Frequency

47Hz - 63Hz

Output Power

1300 W

Output Voltage

Output Voltage	Output Current
+3.3V	22A
+5V	25A
+12V1	105A
-12V	0.3A
+5Vsb	3A

Input Voltage

90-264 V

Connectors

1 x 20+4-pin Main

2 x 4+4-pin 12V

12 x SATA

5 x Molex

6 x 6+2-pin PCI-E

1 x Floppy

Certifications & Standards

80 PLUS Gold

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: Cooler Master
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Cooler Master at (909) 673-9880
Technical Support: Cooler Master (909) 673-9880

Package Contents

Cooler Master Silent Pro Hybrid 1300W PSU
5.25" Fan Control Unit
Modular Cables
Power Cable
User's Guide
