Cooler Master Excalibur PWM 120mm fan - (Discontinued)

SKU:

910-11404

Fan speed: 600 - 2000 RPM
Air Flow: 26.4 - 85.6 CFM
MTBF: 100,000 hours

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Thermaltake CT120 EX INFINITY ARGB Sync PC Cooling Fan (3-Fan Pack)

: Thermaltake CT120 EX INFINITY ARGB Sync PC Cooling Fan - Snow

Excalibur, as the name suggests, is inspired by the legendary sword of King Arthur from the middle ages. The nine massive sword-shaped blades are designed to produce exceptionally high air pressure, which fortify the cooling efficiency when used in dense water cooling radiators or performance heatsinks.

This is the first fan from Cooler Master to adopt Barometric Ball Bearing (BBB) technology.

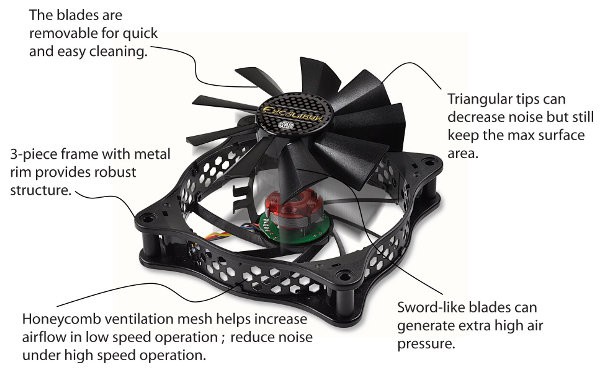

Features

The innovative Barometric Ball Bearing technology provides longer life span while remaining lower noise level.

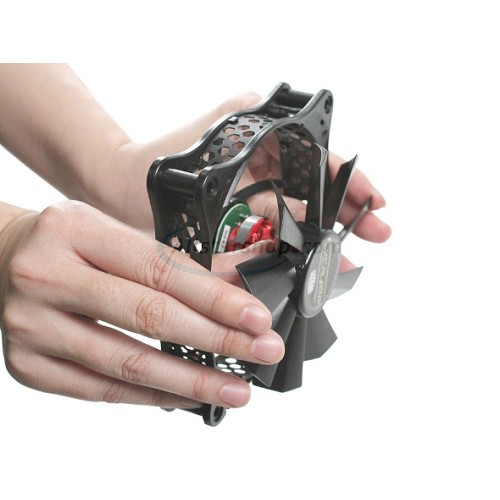

Removable blades for quick and easy cleaning.

Nine massive sword-shaped blades generate outstanding high air pressure with balanced airflow.

Triangular blade tips reduce turbulence at fan edges and decrease wind shear noise while keeping maximum sweeping area.

3-piece frame with metal rim provides robust structure.

Honeycomb ventilation meshed frame:
- Low speed operation works as a secondary intake to increase airflow.
- High speed operation helps to reduce noise by releasing excessive turbulence and vibration.
PWM function for total performance solution at high and low speed operation.

Description

The innovative Barometric Ball Bearing technology provides longer life span while remaining lower noise level.

Removable blades for quick and easy cleaning.

Nine massive sword-shaped blades generate outstanding high air pressure with balanced airflow.

Triangular blade tips reduce turbulence at fan edges and decrease wind shear noise while keeping maximum sweeping area.

3-piece frame with metal rim provides robust structure.

Honeycomb ventilation meshed frame:
- Low speed operation works as a secondary intake to increase airflow.
- High speed operation helps to reduce noise by releasing excessive turbulence and vibration.
PWM function for total performance solution at high and low speed operation.

Specifications

Dimensions

120x120x25

Speed

600 - 2000 RPM ? 10%

Noise

13 - 30 dBA

Air Flow

26.4 - 85.6 CFM ? 10%

Bearing

Barometric Ball Bearing

Connector (s)

4 Pin

Additional information

Fan Life Expectancy 100,000 hours

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Cooler Master
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Cooler Master at (909) 673-9880
Technical Support: Cooler Master (909) 673-9880

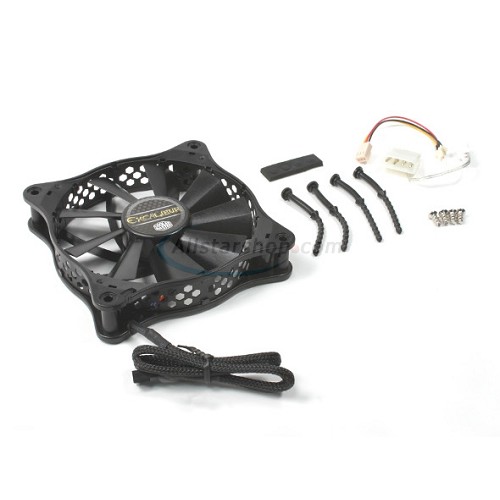

Package Contents

Cooler Master Excalibur PWM 120mm fan
Rubber screw x 4
Metal screw x 4
Rubber pad x 4
4-to-3 Pin adapter x 1
