SKU: 800-51135C
  • Integrated Intel Graphics - DVI / HDMI
  • Max 64GB / 4x DDR4 DIMM / Up to 2666
  • 6x SATA 6Gb/s, 2x M.2
  • Up to 2x USB 3.1, 3x USB 3.0 (1x USB-C), 5x USB 2.0
  • 1x PCIe X16, 2x PCIe X1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1151 socket for 8th Generation Intel Core i7/ i5/ i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B360 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory
Maximum RAM
64GB

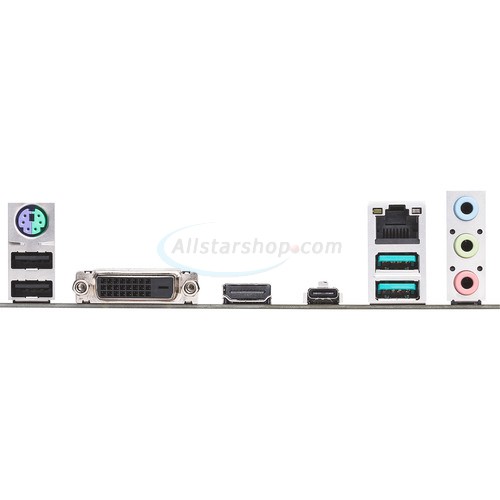

Back Panel I/O
  • 1 x PS/2 keyboard/mouse combo port
  • 2 x USB 3.1 Gen2 Type-A ports
  • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port
  • 2 x USB 2.0
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Integrated Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel I219V Gigabit LAN
USB
    Up to 10 x USB ports:
    • 2 x USB 3.1 Gen2 Type-A ports on Back Panel I/O
    • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 2 x USB 2.0 Ports on Back Panel I/O
    • 3 x USB 2.0 ports via headers
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
1 x PS/2 keyboard/mouse combo port
Form Factor
microATX
Dimensions
9.6" x 9.5"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

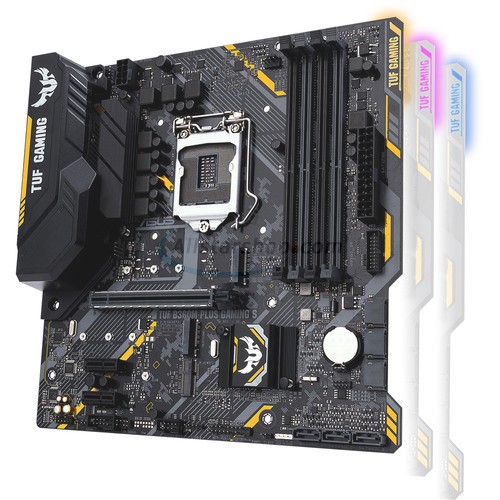

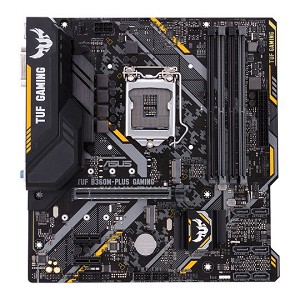

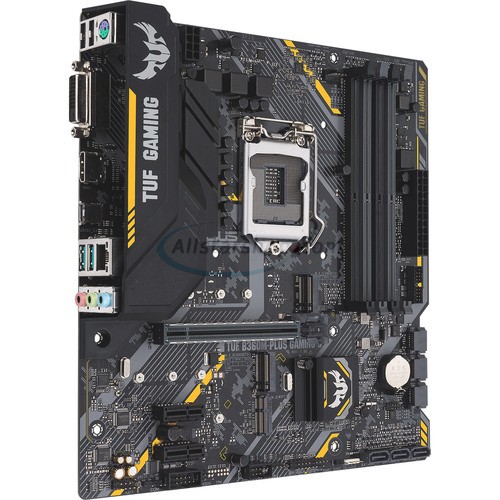

  • TUF B360M-PLUS GAMING S motherboard
  • User's manual
  • I/O Shield
  • Supporting CD
  • 2 x SATA 6Gb/s cables
  • 2 x M.2 Screws
  • 1 x TUF Gaming Sticker
  • 1 x TUF Certification card
