  1. Home
  2. Motherboards
  3. Server/Workstation Boards
SKU: 800-51027H
  • Max 64GB / 8 Dimm DDR3 1866/1600/1333
  • 4x SATA 6Gb/s, 4x SATA / RAID 0, 1, 10, 5
  • Up to 4x USB 3.0, 13x USB 2.0, 1x IEEE1394a
  • 6x PCIe X16
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA2011 socket:
    • Core i7
Number of Processor (s)
Single (Not Included)
Chipset
Intel X79
System Bios
UEFI BIOS
Video card slot
PCI-Express 3.0 X16
Number of Memory Slots
8
Type of Memory Supported
240-pin DDR3 1866/1600/1333/1066 MHz
Maximum RAM
64GB

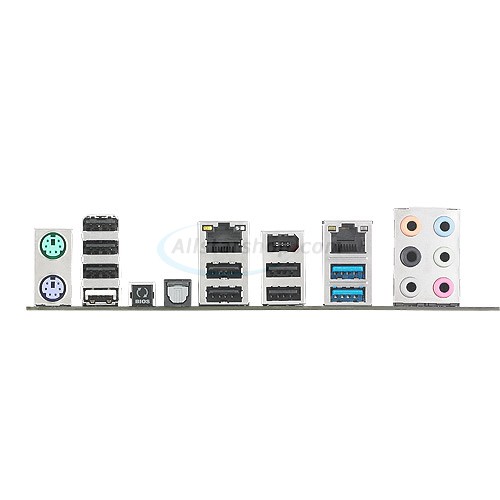

Back Panel I/O
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 2 x USB 3.0 ports
  • 8 x USB 2.0 ports
  • 1 x Optical S/PDIF Out
  • 1 x IEEE 1394a port
  • 1 x LAN (RJ45) port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 4 x PCI-Express 3.0 X16
    • dual x16, triple x16/8/8, quad x8, black+blue
  • 2 x PCI-Express 3.0 X4 using X16 slot
On-Board EIDE/Floppy
No
Integrated SATA/SAS
    Intel X79:
    • 2 x SATA 6Gb/s
    • 4 x SATA 3Gb/s
    Marvell PCIe 9128 controller :
    • 2 x SATA 6Gb/s
Integrated SATA/SAS RAID
Supports RAID 0, 1, 10 and 5
Integrated Audio
Realtek ALC898 8-Channel High Definition Audio CODEC
Integrated Video
No
Integrated LAN
  • Intel 82579V Gigabit LAN controller
  • Intel 82574L Gigabit LAN controller
USB
    Up to 17 x USB ports:
    • 2 x USB 3.0 ports on Back Panel I/O
    • 2 x USB 3.0 ports via headers
    • 8 x USB 2.0 ports on Back Panel I/O
    • 5 x USB 2.0 ports via headers
IEEE 1394
1 x IEEE 1394a port
Serial/Parallel Ports
No
PS/2 Ports
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
Form Factor
CEB
Dimensions
12" x 10.5"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • ASUS P9X79 WS motherboard
  • User's manual
  • Driver CD
  • ASUS Q-Shield
  • I/O Shield
  • 2 x SATA 3Gb/s cables
  • 4 x SATA 6Gb/s cables
  • 1 x 3-Way SLI bridge
  • 1 x 4-Way SLI bridge
  • 1 x SLI bridge
  • 1 x Q-connector
