SKU: 800-26574
  • Max 128GB / 4x DDR4 DIMM / Up to 4666+(O.C.)
  • 8x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 2x USB 3.2 G2 (1x USB-C), 10x USB 3.2 G1, 4x USB 2.0
  • 2x PCIe x16, 3x PCIe x1
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
AMD AM4 Ryzen 5000 series processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD X570
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
  • 3rd Gen AMD Ryzen : DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  • 2nd Gen AMD Ryzen: DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  • 2nd Gen Ryzen with Radeon Vega Graphics: DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
128GB

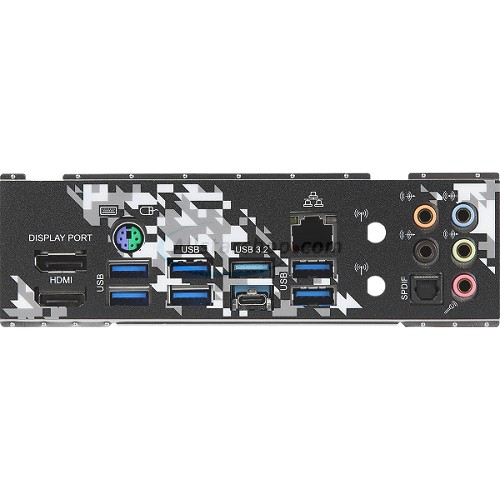

Back Panel I/O
  • 1 x PS/2 Mouse/Keyboard
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB 3.2 Gen2 Type-C port
  • 6 x USB 3.2 Gen1 ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 2 x Antenna ports
Number of PCI/PCI-Express Slots
  • 2 x PCIe x16
    • 3rd Gen AMD Ryzen: single 4.0 x16 or dual 4.0 x16, x4
    • 2nd Gen AMD Ryzen: single 3.0 x16 or dual 3.0 x16, x4
    • 2nd Gen Ryzen with Radeon Vega Graphics: single 3.0 x8 or dual 3.0 x8, x4
  • 3 x PCIe 4.0 x1
Integrated SATA/SAS
8 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, with M key, type 2230/2242/2260/2280 storage devices support up to PCIe 4.0 x4 with 3rd Gen Ryzen or PCIe 3.0 x4 with 2nd Gen Ryzen
  • 1 x M.2 Socket 3, with M key, type 2230/2242/2260/2280/22110 storage devices support SATA and up to PCIe 4.0 x4
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Intel I211AT Gigabit LAN
USB
  • 1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 6 x USB 3.2 Gen1 ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 ports via headers
  • 4 x USB 2.0 via headers
PS/2 Ports
1 x PS/2 Mouse/Keyboard
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

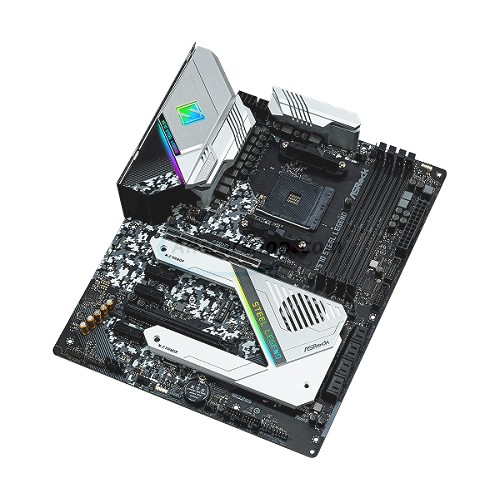

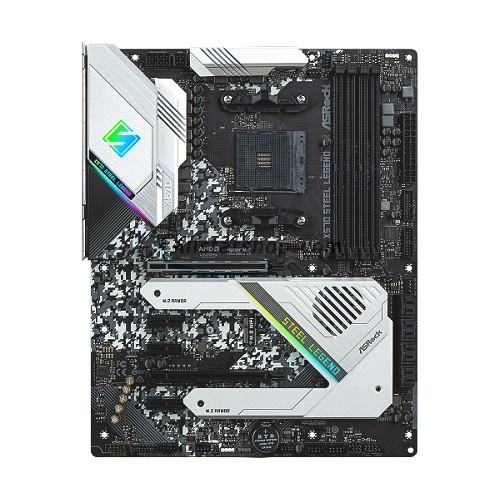

  • ASRock X570 Steel Legend motherboard
  • User's manual
  • Supporting CD
  • 4 x SATA cable
  • 3 x Screws for M.2 Sockets
  • 2 x Standoffs for M.2 Sockets
