SKU: 800-26577
  • Max 64GB / 2x DDR4 DIMM / Up to 4533+(O.C.)
  • 4x SATA 6GB/s, 1x M.2 / RAID 0, 1, 10
  • Up to 3x USB 3.2 G2 (1x USB-C), 4x USB 3.2 G1, 2x USB 2.0
  • 1x PCIe 4.0 x16
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
AMD AM4 3rd and 2nd Gen Ryzen processor
Number of Processor (s)
Single (Not Included)
Chipset
AMD X570
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
2
Type of Memory Supported
  • 3rd Gen AMD Ryzen : 4533+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory
  • 2nd Gen AMD Ryzen: DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
  • 2nd Gen Ryzen with Radeon Vega Graphics: DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
64GB

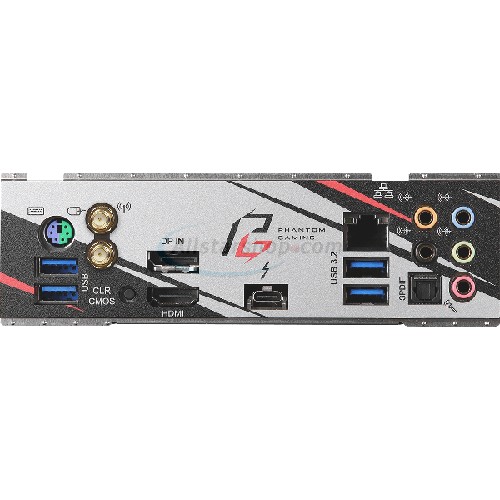

Back Panel I/O
  • 1 x PS/2 Mouse/Keyboard
  • 2 x USB 3.2 Gen2 Type-A ports
  • 1 x USB 3.2 Gen2 Type-C port
  • 2 x USB 3.2 Gen1 Type-A ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 2 x Antenna ports
Number of PCI/PCI-Express Slots
    1 x PCIe x16:
    • 3rd Gen AMD Ryzen 4.0 x16
    • 2rd Gen AMD Ryzen 3.0 x16
    • 2nd Gen Ryzen with Radeon Vega Graphics: 3.0 x8
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
1 x M.2 Socket 3, with M key, type 2280 storage devices support up to PCIe 4.0 x4 with 3rd Gen Ryzen or PCIe 3.0 x4 with 2nd Gen Ryzen
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220 7.1-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Intel I211AT Gigabit LAN
Integrated Wifi
Intel 802.11ax WiFi
USB
  • 2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via headers
  • 2 x USB 2.0 ports via headers
PS/2 Ports
1 x PS/2 Mouse/Keyboard
Form Factor
Mini ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

  • X570 Phantom Gaming-ITX/TB3
  • User's manual
  • Supporting CD
  • 2 x SATA cable
  • 1 x ASRock WiFi 2.4/5 GHz Antenna
  • Screw for M.2 Socket
