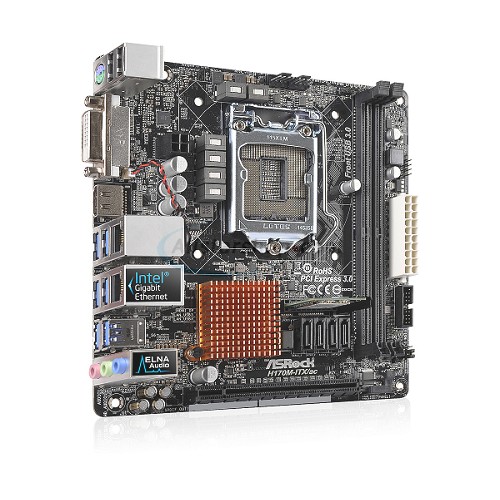

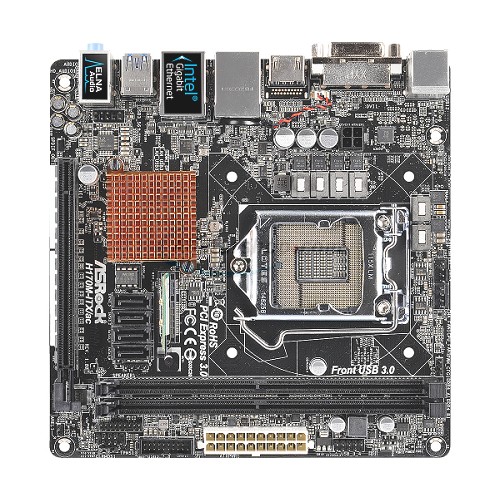

SKU: 800-26510C
  • Integrated Intel Graphics - DVI / HDMI
  • Max 32GB / 2x DDR4 DIMM / Up to 2133
  • 4x SATA 6Gb/s, 1x mSATA / RAID 0, 1, 10, 5
  • Up to 8x USB 3.0, 4x USB 2.0
  • 1x PCIe X16
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1151 socket for 6th Generation Intel Core i7/ i5/ i3/Pentium/Celeron Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel H170 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
2
Type of Memory Supported
288-pin DDR4 2133 MHz, non-ECC, un-buffered memory
Maximum RAM
32GB

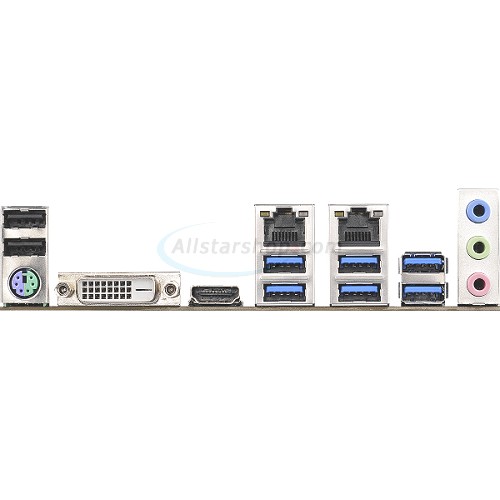

Back Panel I/O
  • 1 x PS/2 Keyboard/mouse combo port
  • 6 x USB 3.0 (USB 3.1 Gen1) ports
  • 2 x USB 2.0 ports
  • 1 x HDMI port
  • 1 x DVI-D
  • 2 x RJ45 LAN ports
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 1 x Mini-PCIe for WiFi + BT Module
Integrated SATA/SAS
  • 4 x SATA 6Gb/s
  • 1 x mSATA Connector (shared with Mini-PCI Express Slot)
# of SATA Express Ports
Not Available
# of M.2 Ports
Not Available
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC892 8-channel high definition audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
  • 1 x Intel I219-V Gigabit LAN
  • 1 x Realtek RTL8111H Gigabit LAN
  • 802.11a/b/g/n/ac
  • Bluetooth v4.0
USB
    Up to 12 x USB ports:
    • 6 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 2 x USB 2.0 ports on Back Panel I/O
    • 2 x USB 2.0 ports via headers
eSATA
Not Available
IEEE 1394
Not Available
Serial/Parallel Ports
Not Available
PS/2 Ports
1 x PS/2 Keyboard/mouse combo port
Form Factor
Mini-ITX

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

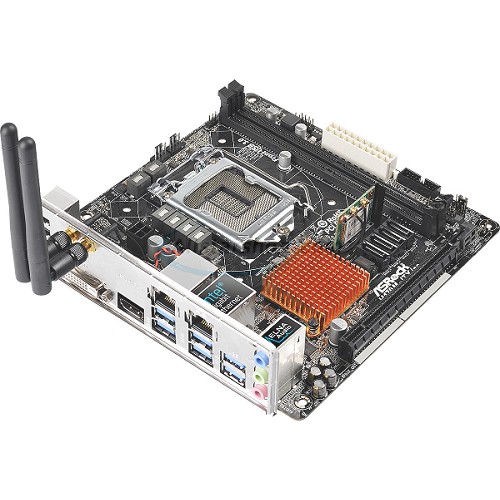

Package Contents

  • H170M-ITX/ac motherboard
  • User's manual
  • I/O Shield
  • Support CD
  • 2 x SATA 6Gb/s cables
  • 1 x WiFi-802.11ac Module
  • 2 x SMA WiFi Antenna Cables
  • 2 x ASRock WiFi 2.4/5 GHz Antennas
  • 1 x WiFi Module Bracket
