SKU: 800-26555F
  • Integrated Radeon Graphics - HDMI
  • Max 128GB / 4x DDR5 DIMM / Up to 6600+ (O.C.)
  • 4x SATA 6GB/s, 3x M.2 / RAID 0, 1, 10
  • 3x USB 3.2 G2 (2x USB-C), 4x USB 3.2 G1, 9x USB 2.0
  • 1x PCIe 5.0 x16, 1x PCIe 3.0 x16, 1x PCIe 4.0 x1
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
AMD Ryzen 7000 series processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD B650E
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-6600+(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800, ECC and Non-ECC, Un-buffered Memory
Maximum RAM
128GB

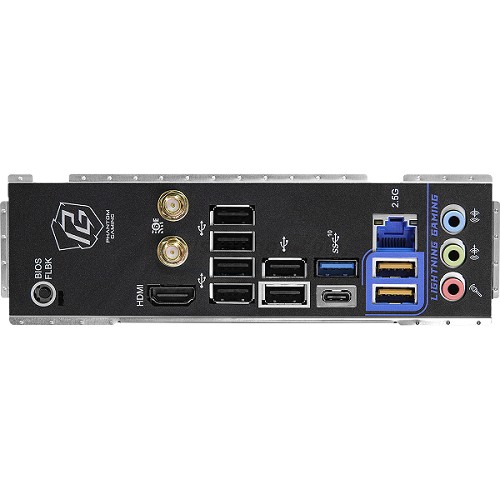

Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB 3.2 Gen2 Type-C port
  • 2 x USB 3.2 Gen1 Type-A ports
  • 6 x USB 2.0
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 2 x Antenna connectors
Number of PCI/PCI-Express Slots
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 3.0 x16 (max x4)
  • 1 x PCIe 4.0 x1
    Integrated SATA/SAS
    4 x SATA 6Gb/s
    # of M.2 Ports
    • 1 x M.2 socket, with M key, type 2280 supports PCIe 5.0 x4 mode
    • 1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 3.0 x2 & SATA mode
    • 1 x M.2 socket, with M key, type 2260/2280 supports PCIe 4.0 x4 mode
    Integrated SATA/SAS RAID
    RAID 0, 1, 10
    Integrated Audio
    Realtek ALC897 7.1 High Definition Audio CODEC
    Integrated Video
    Integrated Graphics from processor (Actual support may vary by CPU)
    Integrated LAN
    Realtek 2.5 Gb Ethernet
    Integrated Wifi
    2x2 Wi-Fi 6E & Bluetooth
    USB
    • 1 x USB 3.2 Gen 2x2 Type-C via header
    • 1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
    • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
    • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
    • 2 x USB 3.2 Gen1 Type-A ports via header
    • 6 x USB 2.0 on Back Panel I/O
    • 3 x USB 2.0 via headers
    Form Factor
    ATX
    Dimensions
    12" x 9.6"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 1 year
    • Warranty Provider: Asrock
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
    • Technical Support: Asrock (909) 590-8308

    Package Contents

    • ASRock B650E PG RIPTIDE WIFI motherboard
    • User Manual
    • 2 x SATA cables
    • 2 x Screws for M.2 Sockets
    • 1 x Graphics Card Holder
    • 2 x ASRock WiFi 2.4/5/6 GHz Antennas
