SKU: 800-26565A
  • Max 64GB / 2x DDR4 DIMM / Up to 4733(O.C.)
  • 4x SATA 6GB/s, 1x M.2 / RAID 0, 1, 10
  • Up to 6x USB 3.2 G1 (1x USB-C), 4x USB 2.0
  • 1x PCIe x16
Our Price: $100.95
List Price: $124.95 You save: $24.00
Availability: Usually ships within 1-2 business days
Quantity:


Specifications

CPU Support
AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors Processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD A520
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 x16
Number of Memory Slots
2
Type of Memory Supported
DDR4 4733(O.C.) / 4666(O.C.) / 4600(O.C.) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200 / 3000/ 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum RAM
64GB

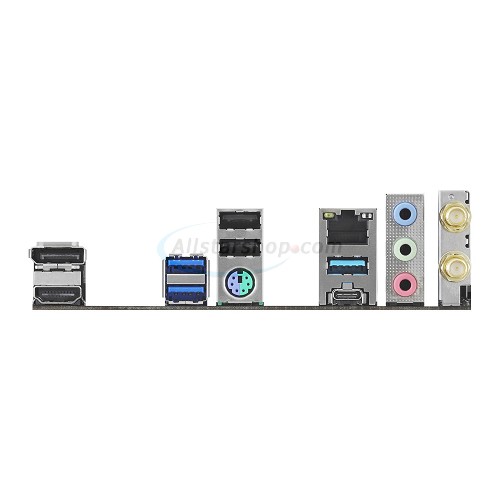

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse combo port
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 2 x USB 2.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 2 x Antenna port
Number of PCI/PCI-Express Slots
1 x PCIe 3.0 x16
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
1 x M.2 Socket 3, with M Key, Type 2280 supports PCIe 3.0 x4 and SATA storage devices
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek RTL8111H Gigabit LAN
Integrated Wifi
Intel 802.11ac WiFi Module
USB
  • 3 x USB 3.2 Gen1 Type-A on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-C on Back Panel I/O
  • 2 x USB 3.2 Gen1 via header
  • 2 x USB 2.0 on Back Panel I/O
  • 2 x USB 2.0 via header
PS/2 Ports
1 x PS/2 Keyboard/Mouse combo port
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

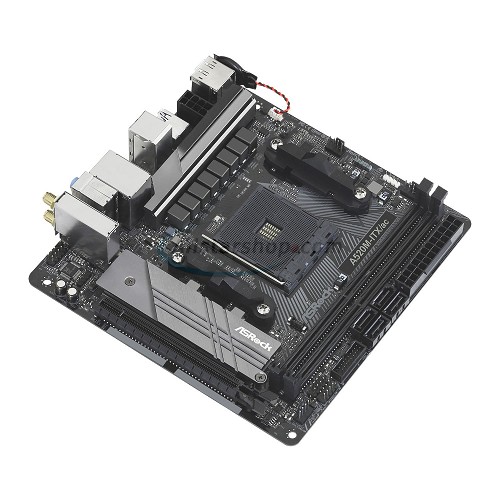

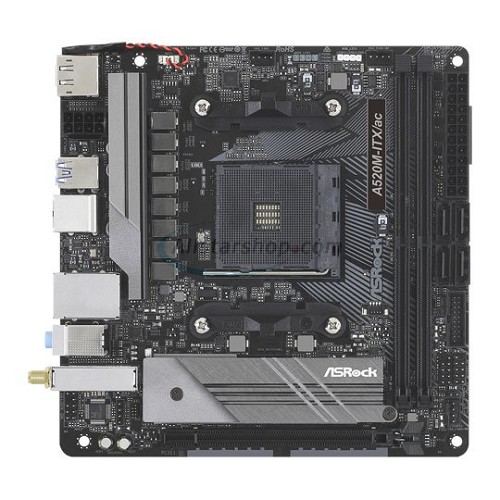

  • ASRock A520M-ITX/ac motherboard
  • Quick Installation Guide
  • Supporting CD
  • I/O Shield
  • 2 x SATA 6Gb/s cables
  • 2 x ASRock WiFi 2.4/5 GHz Antennas
