ATEN VS491 4-Port Video Switch

ATEN VS491 4-Port Video Switch - (Discontinued)

Support: (888) 999-2836

ATEN VS491 4-Port Video Switch - (Discontinued)

SKU:

541-34002

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Kingston 32GB DDR5-5600 CL46 1Rx8 288-pin DIMM

: Solidigm D7-PS1010 3.84TB PCIe 5.0 x4 U.2 NVMe SSD

: Solidigm D7-PS1010 7.68TB PCIe 5.0 x4 U.2 NVMe SSD

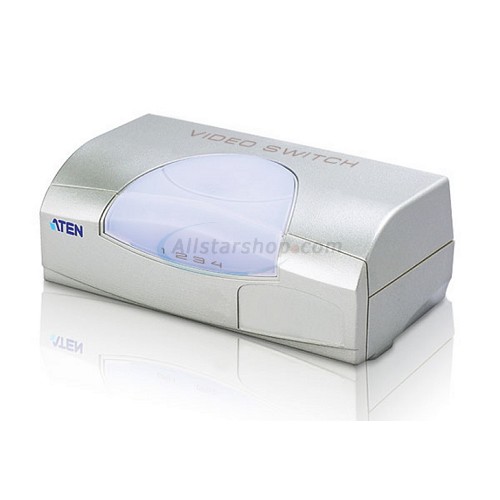

VS491 is a video switch with 4 ports. It allows 4 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buy monitors for each computer additionally.

Description

Specifications

Number of Computers

Number of Monitors

Video Signal

VGA

SVGA

XGA

MultiSync

Graphics Resolution

1920 x 1440Maximum

Port Selection

1 x push button

Operating Range

30 ft

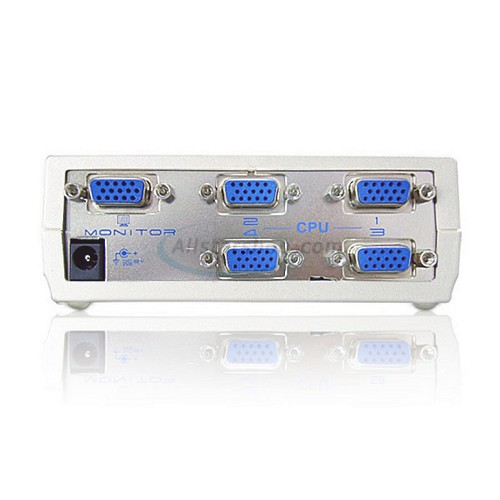

Interfaces/Ports

4 x 15-pin D-Sub (HD-15) Computer(s)

1 x 15-pin D-Sub (HD-15) Monitor

Status Indicators

4 x Selected port

Input Voltage

9 V DC

Input Current

150 mA

Power Consumption

1.35W Maximum

Dimensions

1.73" Height x 4.72" Width x 2.36" Depth

Parts Warranty/Labor

3 Year(s)

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: ATEN
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact ATEN at (949) 428-1111
Technical Support: ATEN (888) 999-2836 or visit ATEN technical support online.

Package Contents

ATEN VS491 4-Port Video Switch
Power Adapter

ATEN VS491 4-Port Video Switch - (Discontinued)

ATEN VS491 4-Port Video Switch - (Discontinued)

Specifications

Warranty and Service

Package Contents
